DM-12 PARM 1 Off-Route Anti-Tank Mine

Ordnance Overview

The DM-12 PARM 1 (Panzerabwehrrichtmine, or “Directional Anti-Armor Mine”) represents a significant advancement in off-route anti-tank mine technology. Unlike traditional anti-tank mines that must be placed directly in a vehicle’s path, the PARM 1 is a horizontally-fired system that can engage targets from the side of a road or path. This off-route capability gives defenders tactical advantages in mine placement and makes the weapon particularly effective in ambush scenarios and area denial operations.

Country/Bloc of Origin

Country: Federal Republic of Germany (West Germany)
Developer: Diehl BGT Defence
Development Period: Early 1970s
Service Entry: 1977
NATO Member: Yes
Export: Limited distribution to NATO allies and select partner nations

The PARM 1 was developed during the Cold War as part of West Germany’s defensive strategy against potential Warsaw Pact armored advances through the Fulda Gap and other strategic corridors.

Ordnance Class

Primary Classification: Off-route anti-tank mine
Weapon Type: Directional explosively formed penetrator (EFP) mine
Target: Armored vehicles, particularly main battle tanks and armored personnel carriers
Delivery Method: Hand-emplaced, vehicle-deployed, or helicopter-scattered
Operational Mode: Command-detonated or sensor-activated
Employment: Defensive area denial and route interdiction

Ordnance Family/Nomenclature

Official Designations:

DM-12: German military designation (Deutsche Munition 12)
PARM 1: Common designation (Panzerabwehrrichtmine 1)

Related Variants:

PARM 2: Improved successor with enhanced stand-off distance and penetration
DM-22: Alternative designation used in some documentation

NATO Recognition:

Recognized as a standard NATO off-route mine system
NSN (NATO Stock Number): 1345-12-168-9867

Alternative Names:

“Directional Mine 12”
“Side-attack mine”
Simply “PARM” in operational contexts

Hazards

The PARM 1 presents multiple serious hazards that make it extremely dangerous to both military forces and civilian populations:

Primary Hazards:

Explosively Formed Penetrator (EFP): Fires a high-velocity copper slug capable of penetrating up to 200mm of armored steel at 90 meters
Directional Blast: High-velocity metal jet travels at approximately 2,000 meters per second
Fragmentation: Mine casing and components become deadly shrapnel in a wide cone
Secondary Fragmentation: Target vehicle components become additional projectiles

Sensitivity Factors:

Multiple activation options increase handling risks
Can be fitted with anti-handling devices that trigger on disturbance
Some variants include anti-tamper mechanisms
Degrades over time, potentially becoming more sensitive to shock or vibration

Danger Areas:

Primary Kill Zone: 30° cone extending 90-100 meters from mine
Fragmentation Zone: 360° radius up to 50 meters
Backblast Area: 10 meters directly behind the mine
Safe Distance for Handling: Minimum 300 meters when armed

UXO Considerations:

Mines that fail to detonate remain extremely dangerous indefinitely
Electronic components may fail unpredictably over time
Corrosion can affect both reliability and safety mechanisms
Self-destruct mechanisms (when fitted) have a failure rate

Environmental Degradation:

Plastic components resist environmental breakdown (decades-long hazard)
Electronic sensors may fail, but explosive charge remains potent
Weather exposure can damage sensors, causing unpredictable behavior
Burial or vegetation growth makes detection extremely difficult

⚠️ CRITICAL SAFETY WARNING: The PARM 1 is designed to defeat heavily armored vehicles. Its penetrator can easily destroy any civilian vehicle or structure and will cause catastrophic injuries to personnel. All suspected PARM mines must be treated as extremely dangerous and reported immediately to military EOD units.

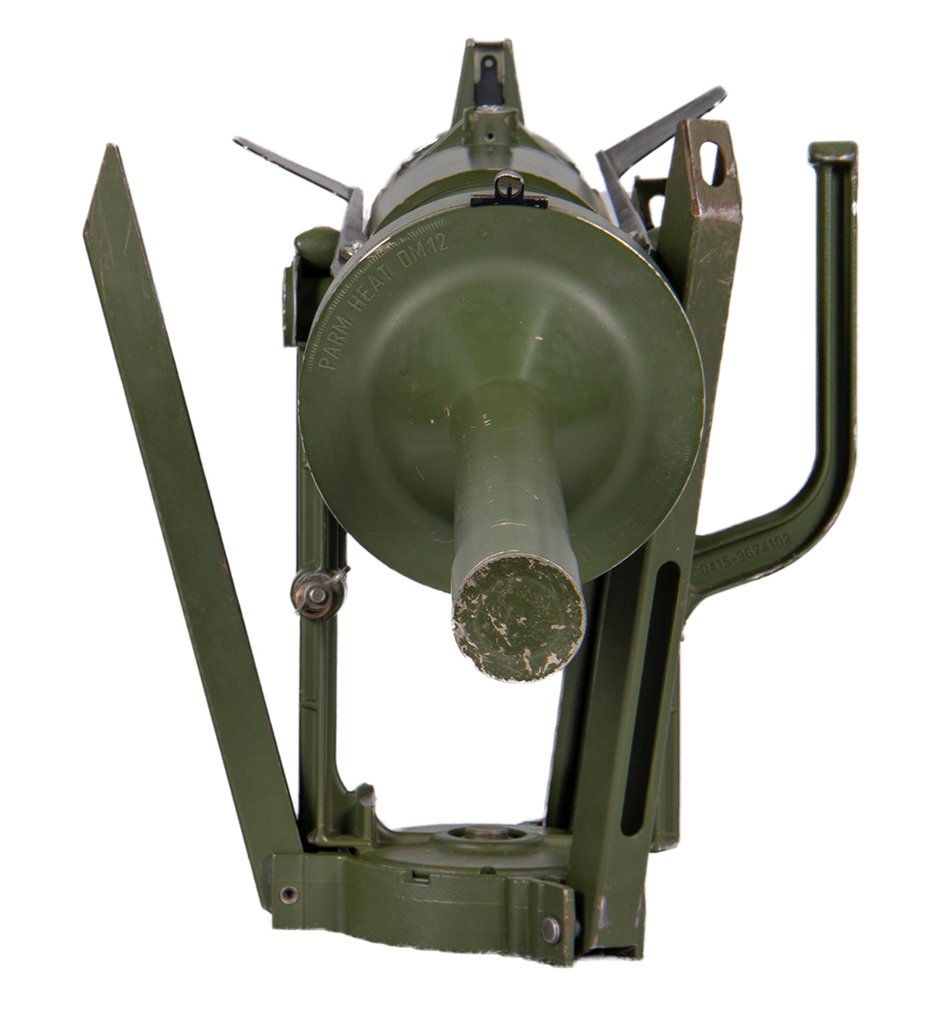

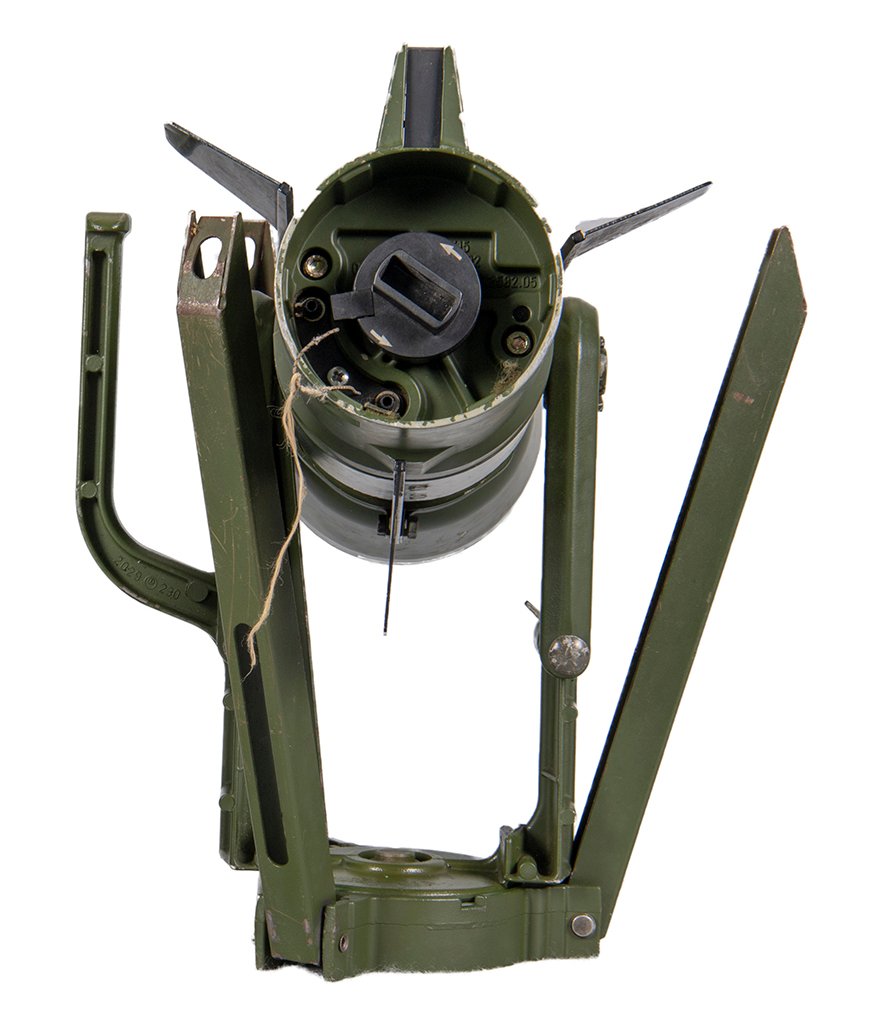

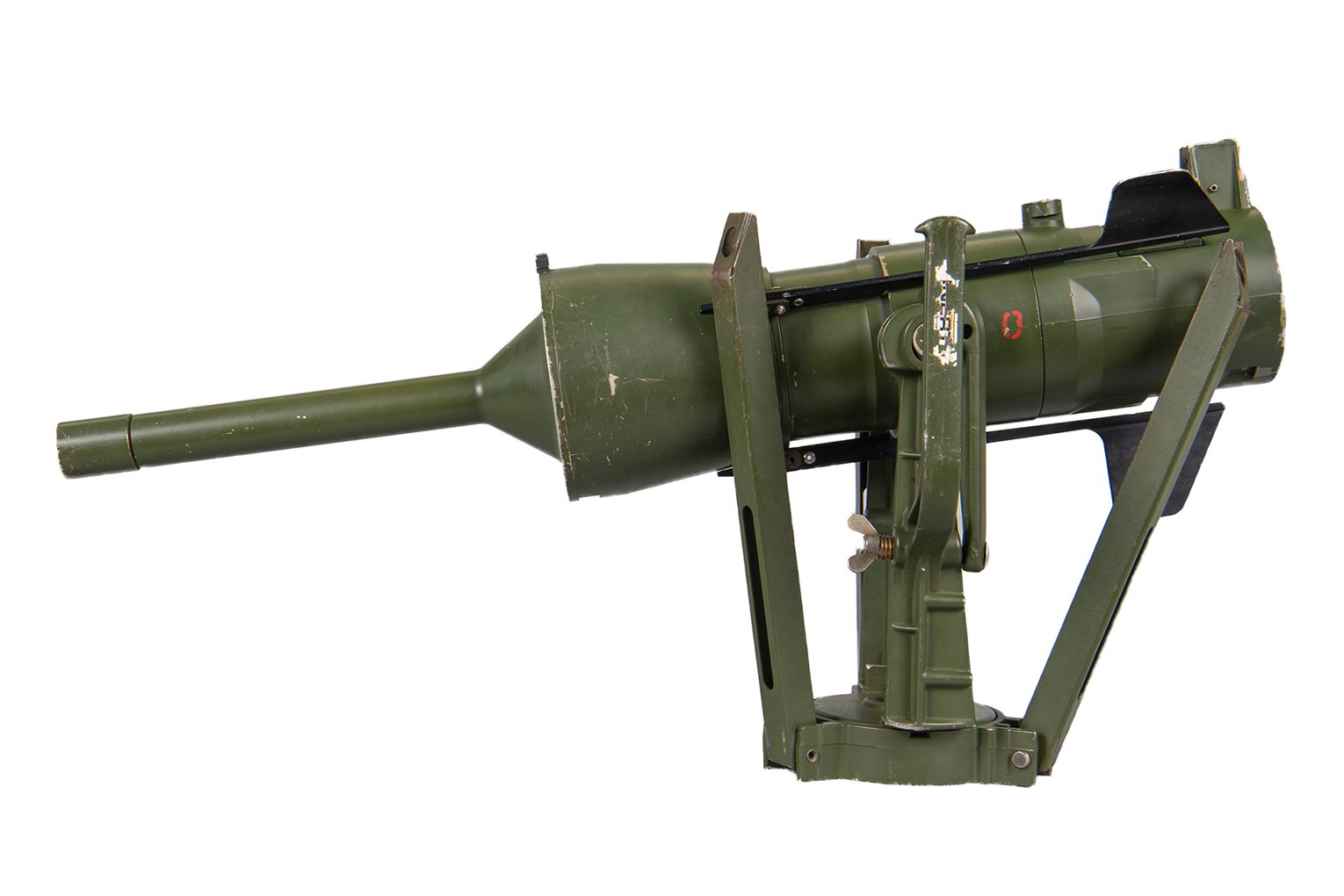

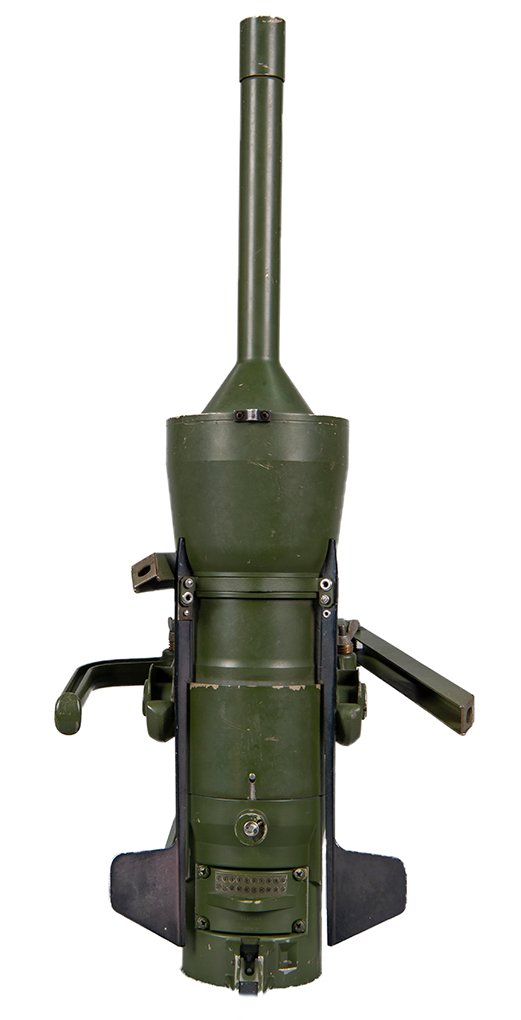

Key Identification Features

Physical Dimensions:

Length: 230mm (9.1 inches)
Width: 180mm (7.1 inches)
Height: 90mm (3.5 inches)
Weight: 4.0kg (8.8 lbs) including explosive
Explosive Weight: 1.4kg of Composition B or equivalent

Shape and Profile:

Distinctive rectangular box configuration
Curved front face housing the EFP liner
Flat mounting base with stake mounting points
Protruding sensor housing on top (when fitted)
Weatherproof sealed construction

Color Schemes and Markings:

Standard Color: Olive drab or dark green
Markings: Yellow stenciling indicating “MINE” and designation
Lot Numbers: Stamped on base or side panel
Warning Symbols: Skull and crossbones, explosion symbol
Manufacturer Mark: Diehl company logo when present

Distinctive Features:

Concave Front Plate: Houses the copper liner that forms the penetrator
Fragmentation Sleeve: Notched wire wrapped around the explosive charge
Tripwire Posts: Two posts extending from the top for wire attachment
Sensor Port: Opening for magnetic influence sensor (when used)
Mounting Stakes: Three metal stakes for ground stabilization

Material Composition:

Housing: High-impact polymer plastic (dark green/olive)
EFP Liner: Copper cone (not visible when assembled)
Internal Structure: Steel mounting brackets
Fragmentation Sleeve: Notched steel wire
Sensor Components: Weather-resistant electronics housing

Unique Identifiers:

Serial number typically located on the base
Date of manufacture code (month/year format)
“DM-12” or “PARM 1” designation clearly marked
Inspection stamps from quality control

Field Identification Indicators:

Often camouflaged with natural materials (leaves, dirt)
Usually oriented perpendicular to expected vehicle approach
May be partially buried with only sensor visible
Associated command wire or sensor tripwire may be visible
Multiple mines often emplaced in groups for overlapping coverage

Fuzing Mechanisms

The PARM 1’s sophisticated fuzing system provides multiple activation options, making it adaptable to various tactical situations:

Primary Fuzing Options:

1. Breakwire/Tripwire Activation

Two metal posts on top of mine accept tripwire attachment
Breaking or pulling the wire completes an electrical circuit
Extremely sensitive (requires only 0.5-3 kg of force)
Instant detonation upon activation
Can be positioned across roads, trails, or likely vehicle paths
Wire typically dark green or camouflaged to avoid detection

2. Magnetic Influence Sensor

Electronic sensor detects ferrous metal mass passing nearby
Activable range: 3-8 meters from mine
Discriminates between large vehicles and smaller metal objects
Battery-powered (typically 3-5 year life)
Can be set to activate on first vehicle or after multiple passes
Most common operational configuration

3. Command Detonation

Electrical firing cable connects to remote firing device
Operator manually initiates detonation from observation post
Cable length typically 50-200 meters
Provides maximum control over engagement
Requires continuous operator presence
Reduces risk of accidental activation

4. Seismic/Acoustic Sensor (Advanced Variants)

Detects ground vibrations from approaching vehicles
Can identify vehicle type by vibration signature
More sophisticated target discrimination
Less common in standard PARM 1 models

Arming Sequence:

Safe Position: Mine is transported with fuze not installed or with safety pin inserted
Fuze Installation: Fuze unit is screwed into mine body
Connection: Sensor, tripwire, or command wire is connected
Arming: Safety pin is removed, typically with 30-60 second delay before mine becomes fully armed
Armed: Mine is now capable of detonation

Safety Mechanisms:

Safety Pin: Prevents accidental detonation during handling and transport
Arming Delay: 30-60 seconds after safety pin removal (allows safe withdrawal)
Test Circuit: Electronic fuzes include testing capability without arming
Battery Check: Indicator shows battery status on electronic fuzes
Redundant Safety: Multiple safety features must be defeated before detonation is possible

Self-Destruct/Self-Neutralization:

Not Standard: Basic PARM 1 does not include self-destruct mechanism
Battery Expiration: Electronic fuzes become inactive when battery depletes (3-5 years)
Optional Add-on: Some variants can be fitted with time-delay self-destruct modules
Limited Deployment: Self-destruct features were not widely adopted due to cost

Anti-Handling Devices:

Mine can be fitted with tilt-rod or pull-wire anti-handling devices
These secondary fuzes prevent safe removal or repositioning of the mine
Typical anti-handling setup triggers if mine is lifted, tilted, or moved
Creates a dilemma for EOD teams attempting to clear the mine
Significantly increases danger to clearance personnel

Power Source:

Electronic fuzes use standard military batteries (typically BA-3090 or equivalent)
Battery voltage: 3-6V DC
Expected battery life: 3-5 years in normal conditions
Cold weather significantly reduces battery life
Some variants include solar panel for extended operation

Detonation Sequence:

Once triggered, the PARM 1 functions through the following sequence:

Fuze activates electric detonator
Detonator initiates main explosive charge (1.4kg Composition B)
Explosive force shapes the copper liner into a penetrating slug
EFP travels at approximately 2,000 m/s toward target
Entire sequence occurs in less than 1 millisecond
Fragmentation sleeve breaks into hundreds of pieces, creating secondary hazard

History of Development and Use

Development Context (1960s-1970s):

The PARM 1 mine was developed during the height of the Cold War, when NATO faced the prospect of massive Warsaw Pact armored formations potentially advancing through Central Europe. Traditional anti-tank mines, which required placement directly in a vehicle’s path, had significant tactical limitations:

They were easily detectable and could be bypassed
They required extensive minefield construction to be effective
Clearing them from roads was time-consuming but achievable
They offered no flexibility in target selection

West German defense planners, working with Diehl Defence, sought a mine that could:

Engage targets from off the road or path
Provide selective engagement capability
Be rapidly deployed in defensive positions
Reduce the number of mines needed for area denial

Key Development Milestones:

1970-1973: Initial concept development and testing of EFP technology
1973-1975: Prototype testing and refinement
1975: First production contract awarded to Diehl
1977: Official adoption by the Bundeswehr as DM-12
1978-1980: Training programs implemented across German forces
1980s: Export to select NATO allies
Late 1980s: Combat field testing in various NATO exercises
1990s: PARM 2 development begins as improved successor

First Deployments:

Initial stockpiling focused on potential Soviet invasion routes through Germany
Emplacement plans developed for the Inner German Border region
Forward deployment positions prepared throughout West Germany
Extensive training with NATO forces on tactics and employment
Never used in combat by German forces during Cold War

Operational History:

The PARM 1 saw limited but significant operational deployment:

1980s-1990s: Export and Distribution

Sold to various NATO countries including Belgium, Netherlands, and Denmark
Technology shared with US for evaluation (influenced development of M93 Hornet)
Deployed in strategic reserve positions across Western Europe
Featured in numerous NATO joint exercises

1990s-2000s: Regional Conflicts

Captured examples appeared in various conflicts globally
Some PARM mines diverted through arms trafficking to non-state actors
Evidence of use in Balkans conflicts, though extent unclear
Reports of PARM or PARM-inspired mines in Middle Eastern conflicts

Post-Cold War Era:

German forces reduced PARM stockpiles significantly after reunification
Many mines transitioned to training use or disposal
Some stockpiles transferred to allied nations
Technology largely superseded by PARM 2 and more advanced systems

Current Status (2020s):

Germany: Phasing out in favor of PARM 2 and advanced systems; remaining stockpiles for training
NATO Allies: Some still maintain PARM 1 stocks, but moving toward retirement
Global Presence: Unknown quantities in various national arsenals
Conflict Zones: Suspected presence in areas with unexploded ordnance contamination
Production: No longer in production; replaced by PARM 2

Impact on Mine Warfare:

The PARM 1 represented a significant technological advancement:

Tactical Innovation: Demonstrated the effectiveness of off-route mine systems
Influence on Design: Inspired development of similar systems by other nations (US M93 Hornet, Soviet TMRP-6)
Doctrine Changes: Led to new tactical employment doctrines for anti-armor mine warfare
Area Denial: Proved that fewer, more sophisticated mines could deny areas more effectively than large minefields
EOD Challenges: Created new challenges for mine clearance operations

Production Numbers:

Estimated total production: 50,000-100,000 units (exact figures classified)
Peak production: Late 1970s to mid-1980s
Export quantities: Unknown but believed to be 10,000+ units
Remaining global stockpiles: Estimated at several thousand units

Legacy:

The PARM 1’s legacy lives on primarily through its successor, the PARM 2, which incorporated lessons learned and technological improvements. The mine demonstrated that directional, sensor-activated mines could provide effective anti-armor capability with fewer resources than traditional minefields. However, like all landmines, the PARM 1’s lasting legacy includes the humanitarian concerns about unexploded ordnance and the difficulty of post-conflict clearance.

Technical Specifications

Explosive Characteristics:

Main Charge: 1.4kg (3.1 lbs) Composition B (60/40 RDX/TNT)
Alternative Fills: Some variants use Hexotol or Octol
Detonation Velocity: Approximately 7,800 m/s
Explosive Performance: Optimized for liner acceleration

Penetration Performance:

Armor Penetration: 200mm (7.9 inches) of rolled homogeneous armor (RHA)
Effective Range: 90-100 meters
Optimal Range: 30-50 meters (maximum effect)
Penetration Angle: Most effective at 90° to target surface
Reduced Effectiveness: Degrades with increased stand-off distance and angle

Explosively Formed Penetrator (EFP):

Liner Material: Copper (high purity)
Liner Shape: Concave cone design
Liner Thickness: Approximately 3mm
Formed Slug Weight: Approximately 500-600 grams
Slug Velocity: ~2,000 m/s at formation
Slug Diameter: Approximately 40-50mm
Coherence: Maintains structural integrity to target

Targeting and Detection:

Sensor Range: 3-8 meters (magnetic influence sensor)
Target Discrimination: Set for vehicles >1,000kg metal mass
Detection Cone: Approximately 30° horizontal
Elevation Coverage: ±10° vertical

Environmental Specifications:

Operating Temperature: -40°C to +63°C (-40°F to +145°F)
Storage Temperature: -50°C to +70°C (-58°F to +158°F)
Humidity Resistance: IP67 rated (dust-tight, waterproof)
Battery Life: 3-5 years (electronic fuzes)
Shelf Life: 20+ years (explosive components)
Weather Resistance: All-weather capable

Deployment Specifications:

Emplacement Time: 5-10 minutes per mine (single operator)
Recommended Spacing: 50-100 meters between mines
Typical Group Size: 3-5 mines for road interdiction
Orientation: Perpendicular to expected vehicle approach
Height Above Ground: 30-50cm typical emplacement
Camouflage: Natural materials or terrain features

Electrical Characteristics (Electronic Fuze):

Operating Voltage: 3-6V DC
Current Drain: <1mA standby, 50-100mA when activated
Circuit Type: Solid-state electronics
EMP Hardening: Limited protection
Test Output: LED indicator on some models

Fragmentation Data:

Fragmentation Sleeve: Notched steel wire
Fragment Count: Approximately 1,500-2,000 pieces
Fragment Weight: 0.5-5 grams each
Fragment Velocity: 800-1,500 m/s
Effective Fragmentation Radius: 50 meters
Lethal Fragment Range: 25 meters

Logistics:

Packing: Individual sealed containers
Transport Weight: 4.5kg (including packaging)
Storage Density: Compact stackable containers
Shelf Monitoring: Annual inspection recommended
Disposal: Requires EOD-qualified personnel

Frequently Asked Questions

Q: Why is the PARM 1 called an “off-route” mine when traditional mines are “on-route”?

A: Traditional anti-tank mines must be buried directly in the path of a vehicle to be effective—they require the vehicle to drive over them to function. The PARM 1, however, is placed beside a road or trail and fires horizontally into the side of a passing vehicle. This “off-route” placement provides several advantages: mines are harder to detect since they’re not in the traveled path, they can be concealed in vegetation or terrain features alongside routes, they allow selective engagement through command detonation or sensor activation, and fewer mines are needed to cover a given area. The PARM 1’s stand-off distance means it can engage targets from 3-8 meters away, effectively covering a road without needing to be in it.

Q: How does the explosively formed penetrator (EFP) differ from shaped charge anti-tank weapons?

A: While both EFPs and shaped charges use explosive energy to defeat armor, they work differently and have distinct advantages. A shaped charge (like those in anti-tank missiles or RPGs) forms a high-velocity jet of metal that penetrates through extreme pressure and temperature—it’s devastating at close range but loses effectiveness quickly with distance. The PARM 1’s EFP, by contrast, forms a solid slug of metal that maintains its structural integrity over much longer distances. The copper liner is explosively deformed into a projectile traveling at about 2,000 m/s, remaining effective out to 90-100 meters. While shaped charges typically offer deeper penetration at close range, the EFP’s ability to remain coherent over distance makes it ideal for an off-route mine where stand-off distances vary. The PARM 1’s 200mm penetration capability is sufficient to defeat most armored vehicles’ side armor.

Q: What makes the PARM 1 particularly difficult for military engineers to detect and clear?

A: The PARM 1 presents multiple clearance challenges. First, its off-route placement means it’s not in the traveled path where traditional mine detectors would be used—it can be hidden in vegetation, behind terrain features, or buried with only sensors exposed. Second, its predominantly plastic construction gives it a very low metal signature, making standard metal detectors less effective. Third, it can be fitted with anti-handling devices that will detonate the mine if clearance personnel attempt to move or disturb it. Fourth, the variety of activation methods (tripwire, magnetic sensor, command wire) means engineers must check for multiple trigger mechanisms. Finally, when deployed in groups with overlapping fields of fire, neutralizing one mine exposes personnel to others. Modern mine clearance requires careful reconnaissance, electronic counter-measures for sensors, manual probing for tripwires, and often remote neutralization techniques using explosive line charges or robots.

Q: Can the PARM 1 distinguish between civilian vehicles and military targets?

A: The short answer is no—at least not reliably. When using the magnetic influence sensor, the PARM 1 can be adjusted to respond only to large metal masses (typically set for vehicles over 1,000kg of ferrous metal), which theoretically should prevent activation by motorcycles or bicycles. However, this setting cannot distinguish between a civilian truck and a military vehicle—both present similar magnetic signatures. Command-detonated PARM mines offer perfect discrimination since a human operator chooses when to fire, but this requires constant manning of firing positions. Tripwire-activated mines have no discrimination capability whatsoever—they will trigger for any vehicle or even large animal that breaks the wire. This lack of reliable target discrimination is one of the key humanitarian concerns with all anti-vehicle mines, as civilian vehicles using the road after hostilities end are at risk. This is why international efforts have focused on requiring remotely detectable mines or those with self-destruct mechanisms.

Q: What happens to PARM mines after a conflict ends, and why are they so dangerous to post-war communities?

A: PARM mines present severe post-conflict hazards for several reasons. Unlike simple pressure-activated mines that remain in known minefields, PARM mines may be scattered along routes in small groups or individually, making systematic clearance difficult. Their plastic construction resists environmental degradation, meaning they remain functional for decades. The electronic fuzes may fail unpredictably—while battery depletion should render sensor-activated mines inert after 3-5 years, corrosion and environmental factors can cause unpredictable behavior. Tripwire-activated PARM mines remain dangerous indefinitely since they’re purely mechanical. The mines may become buried or overgrown, making them invisible to civilian traffic. Because they were designed to fire from off-road positions, they may be in locations civilians don’t expect—near fields, livestock paths, or building sites. The explosive charge remains potent for 20+ years, and even “failed” mines that don’t form proper EFPs still represent serious fragmentation hazards. Post-conflict clearance requires professional EOD teams with specialized equipment, and areas with suspected PARM contamination often remain off-limits for years or even decades.

Q: How did the development of the PARM 1 influence other countries’ mine development programs?

A: The PARM 1’s successful demonstration of off-route mine technology triggered significant international interest and development. The United States observed PARM 1 trials and subsequently developed the M93 Hornet Wide Area Munition, which used similar EFP technology but with air-delivery capability. The Soviet Union developed the TMRP-6 anti-tank mine with comparable off-route capabilities after intelligence suggested NATO was deploying advanced directional mines. The PARM 1 also influenced tactical doctrine—NATO forces began incorporating off-route mines into their defensive planning, recognizing that these weapons could achieve area denial with far fewer munitions than traditional minefields. The mine demonstrated that sensor-fuzed, directional munitions represented the future of mine warfare, leading to increased research into intelligent munitions, target discrimination systems, and self-destruct mechanisms. However, the PARM 1 also highlighted the humanitarian concerns about sophisticated mines that could remain dangerous for decades, contributing to international discussions that eventually led to the Ottawa Treaty (Mine Ban Treaty) in 1997, though off-route anti-tank mines with self-destruct features remained permissible under that agreement.

Q: What tactical scenarios make the PARM 1 most effective, and what are its limitations?

A: The PARM 1 excels in several tactical situations. It’s ideal for hasty defensive positions where time doesn’t permit extensive minefield construction—a small team can emplace effective coverage quickly. It’s particularly effective on roads through wooded or broken terrain where concealment is easy and stand-off distances are optimal (30-50 meters). The PARM 1 is excellent for ambush positions, especially when command-detonated, allowing defenders to engage specific high-value targets while letting others pass. It’s also effective for interdicting likely vehicle approach routes where traditional minefields would be obvious. However, the PARM 1 has limitations: it’s less effective in open terrain where vehicles can see and avoid likely hiding positions; it requires relatively flat terrain (excessive slope degrades EFP effectiveness); it needs clear line-of-sight to targets (vegetation or terrain can disrupt the penetrator); and it’s vulnerable to detection by thermal imaging or ground-penetrating radar. The limited 200mm penetration means modern main battle tanks with heavy frontal armor may survive hits, though side armor is generally vulnerable. Finally, like all mines, PARM 1 requires careful recording of emplacement locations for post-conflict clearance—a requirement often ignored in the chaos of war, leading to long-term hazards.

Q: What safety protocols must EOD teams follow when dealing with a suspected PARM 1 mine?

A: EOD teams approaching a suspected PARM 1 must follow strict protocols due to the mine’s multiple hazards. Initial reconnaissance uses standoff detection methods—visual observation from covered positions at least 300 meters away, possibly using unmanned ground vehicles or robots for closer inspection. If positive identification is made, teams establish a safety perimeter (minimum 300 meters, with 400-500 meters preferred) and evacuate all personnel from potential fragmentation zones. Before approaching, EOD personnel must identify and trace any visible tripwires, command wires, or sensor connections—these often extend significant distances from the mine. Detection equipment is used to locate any metallic components, but teams must remember the mine’s primarily plastic construction limits metal detector effectiveness. If anti-handling devices are suspected (always assume they’re present unless proven otherwise), the mine should not be moved or lifted under any circumstances. Preferred neutralization methods include explosive disruption using sympathetic detonation (destroying the mine in place with a larger charge placed nearby by robot or line charge) or remote removal using grappling hooks and cables. Direct manual approach is considered extremely high-risk and reserved for scenarios where explosive disruption isn’t possible. Throughout operations, EOD teams maintain communication with command, work in teams with observers watching for secondary threats, and document all actions for post-operation reports and clearance records.

Safety Notice

This educational material is provided for identification, training, and explosive ordnance disposal (EOD) reference purposes only. The PARM 1 mine is an extremely dangerous military ordnance item designed to destroy armored vehicles.

If you encounter a suspected PARM 1 mine or any unexploded ordnance:

DO NOT TOUCH OR APPROACH the object
DO NOT attempt to move, photograph up close, or disturb it in any way
Evacuate the immediate area to at least 300 meters distance
Mark the location from a safe distance if possible
Report immediately to military EOD, police, or emergency services
Warn others to stay away from the area

All landmines should be considered armed and dangerous until proven safe by qualified EOD personnel. Unexploded ordnance remains lethal for decades after emplacement.

This information is provided for educational purposes and should not be used for any operational mine handling without proper EOD training and authorization.
