M49 60mm High-Explosive Mortar

Ordnance Overview

The M49A3 60mm High-Explosive (HE) mortar round is a lightweight, indirect-fire munition designed for use with the M2, M19, and M224 60mm mortar systems. As the standard high-explosive round for the 60mm mortar family, it provides infantry units with organic, responsive fire support against personnel and light materiel targets. The M49 series represents one of the most widely produced and distributed light mortar rounds in history, seeing service in conflicts from the Korean War through modern operations.

Country/Bloc of Origin

• Country: United States of America
• Development Period: Late 1940s to early 1950s
• International Distribution: Produced under license or supplied to NATO allies and partner nations worldwide
• Variants: Multiple nations have produced compatible 60mm HE rounds based on the M49 design, including variants manufactured in Europe, Asia, and the Middle East

Ordnance Class

• Type: Mortar projectile
• Primary Role: High-explosive indirect fire against personnel and light materiel
• Delivery Method: Smoothbore, muzzle-loaded, drop-fired indirect fire weapon system
• Sub-Classification: Infantry-portable light mortar ammunition
• Target Set: Area targets, personnel concentrations, light vehicles, field fortifications, and defilade positions

Ordnance Family/Nomenclature

Official Designations

• M49: Original designation for 60mm HE mortar round
• M49A1: Improved variant with modified fuze
• M49A2: Further refinement with enhanced safety features
• M49A3: Current production standard with point-detonating fuze
• M49A4: Recent variant with multi-option fuze

NATO Stock Numbers

• NSN: 1315-00-933-4606 (M49A3 variant)
• NSN: 1315-01-267-5651 (M49A4 variant)

Related Family Members

• M302A1: White phosphorus (WP) smoke round
• M83: Illumination round
• M69: Practice/training round (inert)
• M888: High-explosive point-detonating training round

Common Names

• “60 mike-mike HE”
• “Light mortar round”
• “60mm bomb”

Hazards

Primary Hazard Profile

The M49 series presents multiple hazard mechanisms that make it extremely dangerous:

Blast Effects

• Contains approximately 0.43 lb (195g) of Composition B explosive
• Produces lethal blast overpressure within 5 meters of detonation
• Blast injuries possible to 15+ meters depending on terrain

Fragmentation

• Pre-notched steel body designed to create approximately 700-800 fragments
• Lethal fragmentation radius: approximately 20-30 meters
• Casualty-producing radius: 50-70 meters
• Fragments maintain lethal velocity to 100+ meters under certain conditions
• Unpredictable fragmentation patterns on uneven terrain

Sensitivity Factors

• Impact Sensitivity: High – designed to detonate on impact with point-detonating fuze
• Pressure Sensitivity: Moderate when fuzed
• Environmental Degradation: Can become more sensitive over time due to explosive degradation
• Handling Sensitivity: Low when properly packaged and transported

Unexploded Ordnance (UXO) Risks

Dud Rate: Historically 2-5% fail to detonate on impact

UXO Hazards:

• Fuze may remain partially armed and extremely sensitive to disturbance
• Corrosion can make UXO more unstable over decades
• May be buried or hidden in vegetation
• Can be triggered by pressure, movement, or vibration

Safety Distances:

• Minimum evacuation distance for suspected UXO: 300 meters
• EOD approach distance determined by qualified personnel only

Environmental and Storage Considerations

• Stable when stored properly in climate-controlled conditions
• Composition B explosive can “sweat” or exude in high temperatures
• Propellant charges can deteriorate, causing erratic flight or misfires
• Requires periodic inspection in long-term storage

⚠️ CRITICAL SAFETY WARNING: All mortar rounds, especially UXO, should be considered EXTREMELY DANGEROUS. Never approach, touch, or attempt to move suspected ordnance. Immediately mark the location, establish a safety perimeter of at least 300 meters, and contact military EOD or local law enforcement.

Key Identification Features

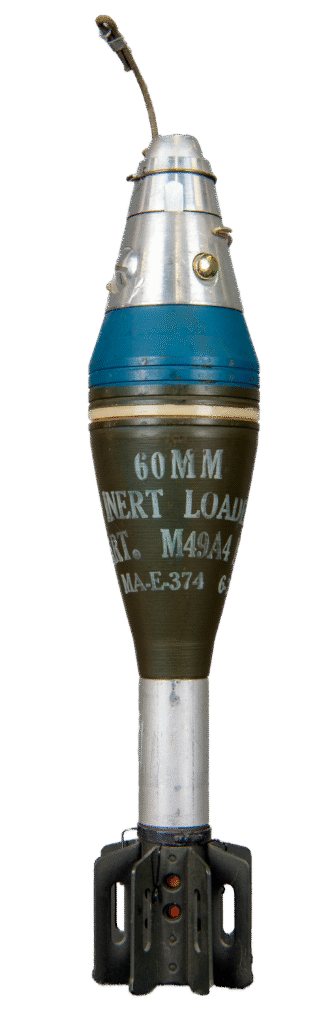

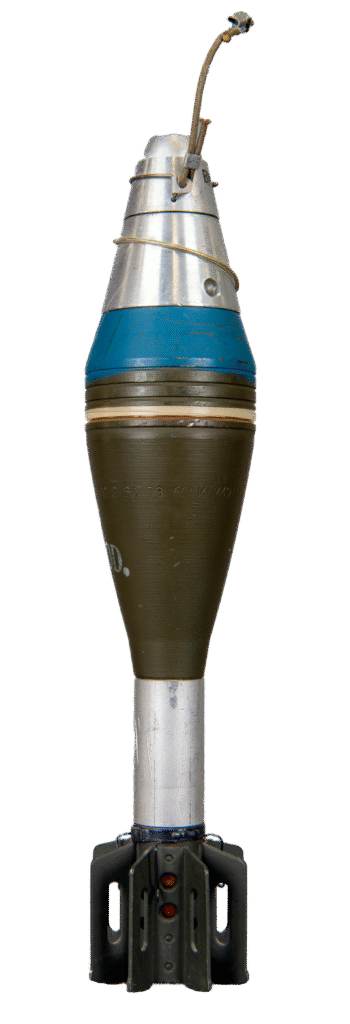

Physical Dimensions

• Length: 11.75 inches (298mm)
• Diameter: 60mm (2.36 inches)
• Weight (Complete Round): 3.1 lbs (1.4 kg)
• Body Material: Forged steel with pre-formed fragmentation grooves

Visual Characteristics

Body Profile:

• Streamlined teardrop/ogive shape
• Smooth nose section transitioning to cylindrical body
• Visible pre-notched fragmentation grooves running longitudinally along body
• Tapering tail boom assembly

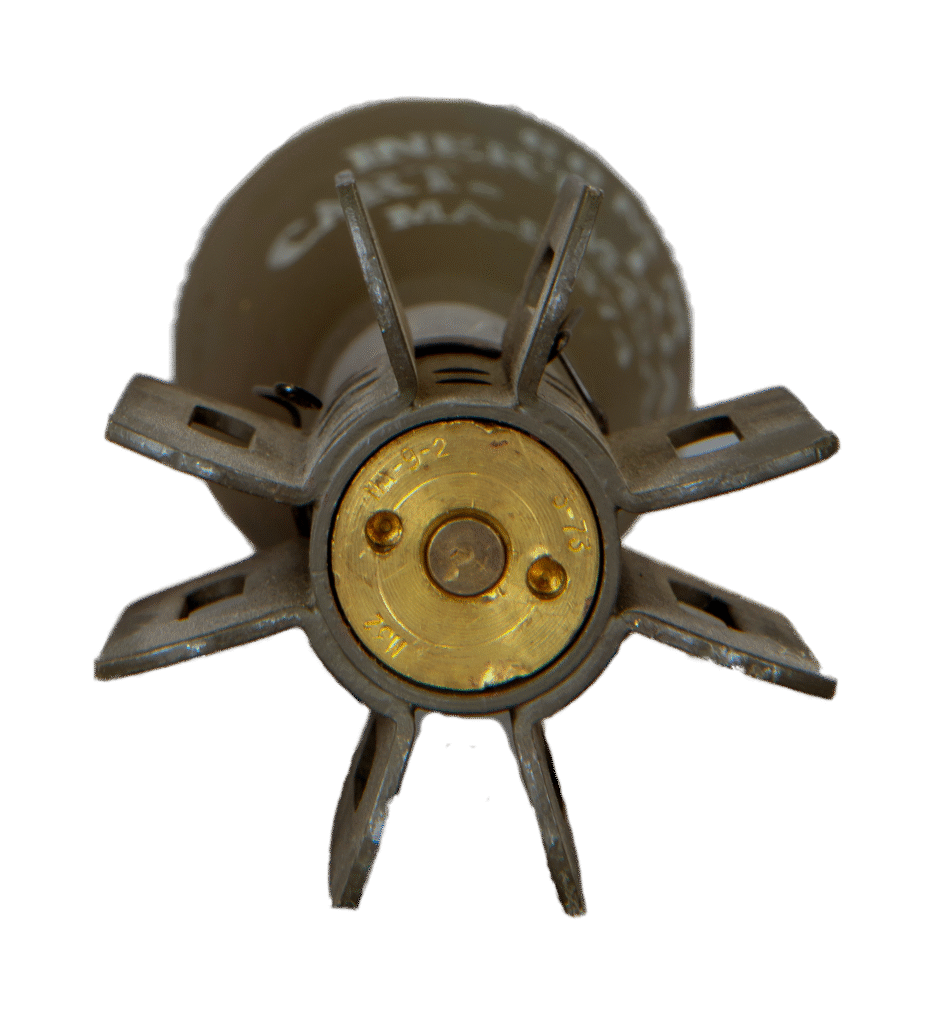

Tail Assembly:

• Cylindrical tail boom approximately 4 inches in length
• 6-fin stabilizer configuration
• Fins are approximately 2.5 inches in diameter when deployed
• Black or olive drab painted fins

Color Coding (Standard US Military Markings):

• Body Color: Olive Drab (OD) or light grey
• Nose Color: Yellow band indicates high-explosive fill
• Yellow: Designates HE content (typically single yellow band near nose)
• Markings: Stenciled white or black nomenclature indicating “60MM MORTAR M49A3 HE”
• Lot numbers and manufacturing date codes

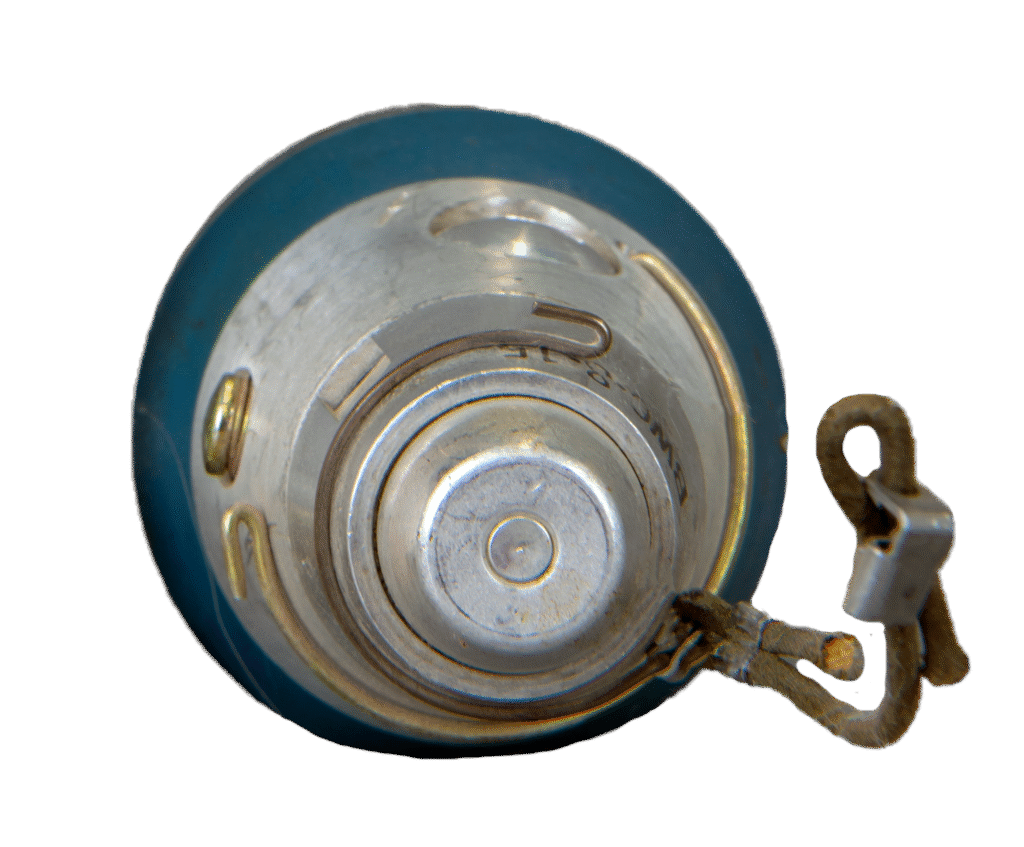

Fuze Identification:

• Point-detonating fuze visible at nose
• M525-series or M557-series fuze most common
• Metal fuze cap may be copper-colored or painted to match body
• Safety pin with ring may be visible on some variants

Propellant Charges:

• Primary propellant charge contained in tail boom
• Additional increment charges may be visible as horseshoe-shaped fabric-wrapped charges attached to tail fins
• Charges are color-coded (typically green or white fabric)

Distinctive Features for Field Identification

1. Size: Small enough to be man-portable (fits in hand)
2. Tail Fins: Distinctive 6-fin configuration (not 4 or 8)
3. Weight Distribution: Noticeably nose-heavy
4. Grooves: Clear pre-fragmentation score marks on body
5. Symmetry: Perfectly radially symmetrical design

Condition Variants

New/Recent Production:

• Clean, intact paint
• All markings clearly visible
• Fins straight and undamaged
• No corrosion

Aged/Weathered:

• Paint may be faded, chipped, or entirely missing
• Rust or corrosion present (especially on steel body)
• Tail fins may be bent or damaged
• Markings obscured or illegible

UXO Indicators:

• Damaged nose (impact deformation)
• Partially buried in soil
• Vegetation growth around round
• May show signs of attempted detonation (scoring, impact marks)

Fuzing Mechanisms

Point-Detonating Fuze Systems

The M49 series utilizes impact-sensitive point-detonating fuzes that initiate the main explosive charge upon contact with a target.

M525-Series Fuze (Most Common)

Type: Mechanical, percussion-initiated point-detonating fuze

Operating Principle:

1. Safe State: Fuze contains a mechanical safety that holds firing pin away from detonator
2. Arming Sequence: Upon firing, setback force and centrifugal force from spin remove safety
3. Flight: Fuze fully arms during flight (typically within 1-2 seconds)
4. Impact: Upon striking target, inertia drives firing pin into stab detonator
5. Detonation Train: Detonator → booster charge → main explosive fill

Arming Distance:

• Fuze arms between 10-30 meters from muzzle
• Designed to prevent detonation if dropped or mishandled before firing

Sensitivity:

• Designed to function on impact with soil, light structures, or foliage
• Some rounds may fail to detonate on soft soil, sand, or mud
• Can function on oblique impacts (side strike)

M557 Fuze (Modern Variant)

Type: Multi-option electronic/mechanical fuze

Capabilities:

• Point-detonating mode (impact)
• Near-surface burst (NSB) mode – detonates slightly above ground for enhanced fragmentation
• Time delay option on some variants

Advantages:

• More reliable functioning
• Better sensitivity adjustment
• Reduced dud rate
• Enhanced lethality through optimized burst height

Safety Mechanisms

Primary Safety Features:

• Setback Safety: Requires acceleration forces from firing to remove first safety
• Centrifugal Safety: Spin from rifling stabilizes round and removes second safety (note: 60mm mortars are smoothbore, so this relies on fin-induced spin)
• Arming Distance: Mechanical timer or distance-dependent mechanism prevents arming before safe distance

Handling Safeguards:

• Safety pin with ring prevents fuze from arming during transport
• Metal shipping caps protect fuze from damage
• Propellant ignition charges have their own safety protocols

Dud Considerations

Fuze Malfunctions:

• Mechanical jamming prevents firing pin release
• Corrosion locks safety mechanisms
• Detonator failure (wet, aged, or damaged)
• Broken firing pin

Round Malfunctions:

• Insufficient impact force on soft targets
• Oblique angle doesn’t generate proper inertia
• Damaged fuze from rough handling or impact during flight

UXO Danger: A dud round may have a partially armed fuze that is extremely sensitive. The firing pin may be nearly in contact with the detonator, requiring only slight disturbance to complete the detonation circuit. NEVER APPROACH OR HANDLE.

Anti-Handling Devices

Standard M49 rounds do NOT contain anti-handling devices. However, operators should be aware that:

• Some nations produce mortar rounds with tilt or vibration sensors
• Combat engineers may booby-trap UXO
• Always treat all UXO as potentially trapped

History of Development and Use

Origins and Development (1940s-1950s)

The M49 60mm mortar round traces its lineage to American light mortar development during World War II. The U.S. Army recognized the need for a portable, responsive indirect fire capability at the infantry company level.

Development Timeline:

• 1940-1943: Early 60mm mortar rounds (M49 precursors) developed alongside M2 60mm mortar
• 1944-1945: Combat experience in Europe and Pacific drives improvements in fragmentation design
• 1950-1951: M49 standardized during Korean War
• 1950s-1960s: M49A1 and A2 variants introduce improved fuzes and safety mechanisms
• 1980s-1990s: M49A3 becomes standard with point-detonating fuze improvements
• 2000s-Present: M49A4 introduces multi-option fuzing technology

Operational History

Korean War (1950-1953):

• First major combat employment of standardized M49
• Proved highly effective in mountainous terrain
• Provided crucial support during Chinese Spring Offensive
• Lightweight portability critical in mobile warfare

Vietnam War (1965-1973):

• Extensive use by infantry units in jungle operations
• Responsiveness valued for close-range fire support
• Effectiveness in base defense and ambush situations
• High round expenditure rates due to guerrilla warfare nature

Cold War Era (1950s-1990s):

• Became standard NATO light mortar ammunition
• Produced in massive quantities for allied forces
• Widely exported to partner nations
• Stockpiled extensively for potential European conflict

Post-Cold War Conflicts (1990s-Present):

• Operation Desert Storm (1991): Used by coalition forces
• Somalia (1993): Urban combat applications
• Bosnia and Kosovo (1990s): NATO operations
• Afghanistan (2001-2021): Mountain warfare, FOB defense
• Iraq (2003-2011): Urban and counterinsurgency operations
• Syria (2014-present): Used by multiple factions
• Ukraine (2022-present): Both sides employ 60mm mortars extensively

Production and Distribution

Manufacturing Scale:

• Tens of millions of M49-series rounds produced since 1950
• Primary U.S. manufacturers included major ordnance plants
• Licensed production in numerous NATO countries
• Unlicensed copies produced in Eastern Bloc and elsewhere

Global Distribution:

• Standard issue in U.S. Army and Marine Corps
• NATO member states (France, Germany, UK, Italy, etc.)
• Middle Eastern allies (Israel, Saudi Arabia, Egypt)
• Asian allies (South Korea, Japan, Taiwan, Philippines)
• Latin American partners
• African nations receiving U.S. military aid

Tactical Evolution and Doctrine

Original Doctrine (1940s-1960s):

• Primarily anti-personnel weapon
• Organic fire support at company level
• Integrated into infantry maneuver warfare
• Emphasis on rapid displacement and direct communication

Modern Doctrine (1990s-Present):

• Precision coordination with forward observers
• Integration with digital fire control systems
• Urban operations emphasis
• Counter-insurgency and base defense roles
• Reduced reliance as precision-guided munitions expand

Current Status

Active Service:

• Remains standard light mortar round in U.S. inventory
• Continuous production for training and operational needs
• Modern M49A4 variant incorporates improved fuzing
• Stockpiled globally in enormous quantities

Obsolescence Factors:

• Increasing preference for 81mm mortars with greater range
• Guided mortar rounds offer precision alternative
• Weight-to-effect ratio questioned in modern context

Legacy and Impact:

• One of most widely distributed infantry munitions in history
• Set standard for light mortar ammunition design
• Influenced development of similar weapons globally
• Continues to be effective in its intended role 70+ years after introduction

Unexploded Ordnance Legacy

Due to its extensive use across decades of conflict, M49 UXO remains a significant humanitarian concern:

• Contamination in former conflict zones (Korea, Vietnam, Afghanistan, etc.)
• Dud rates create persistent hazards
• Demining operations ongoing in affected areas
• Civilian casualties from UXO encounters remain a concern

Technical Specifications

Explosive Fill

• Type: Composition B (RDX/TNT blend)
• Weight: Approximately 0.43 lb (195g)
• Detonation Velocity: ~7,800 m/s

Physical Characteristics

• Total Length: 11.75 in (298mm)
• Body Diameter: 60mm (2.36 in)
• Fin Diameter: 2.5 in (64mm)
• Weight (Complete): 3.1 lb (1.4 kg)
• Weight (Explosive): 0.43 lb (195g)
• Weight (Projectile Body): ~1.8 lb (0.8 kg)

Performance Data

• Maximum Range:
  • M2/M19 Mortar: ~1,850 meters
  • M224 Mortar: ~3,490 meters
• Minimum Range: ~70 meters (safety distance)
• Muzzle Velocity: 158 m/s (M224 maximum charge)
• Time of Flight: 25-30 seconds at maximum range
• Effective Casualty Radius: 20-30 meters
• Burst Pattern: Approximately 700-800 fragments

Accuracy

• Circular Error Probable (CEP):
  • Range dependent: 0.3-1.0% of range
  • Approximately 20-35 meters CEP at maximum range
• Factors Affecting Accuracy:
  • Propellant temperature
  • Tube wear
  • Meteorological conditions
  • Operator skill

Propellant System

• Primary Charge: Fixed in tail boom
• Increment Charges: 0-4 removable horseshoe charges
• Propellant Type: Single-base or double-base smokeless powder
• Ignition: Impact-initiated percussion primer in tail boom

Environmental Parameters

• Operating Temperature: -40°F to +140°F (-40°C to +60°C)
• Storage Temperature: -60°F to +160°F (-51°C to +71°C) short-term
• Humidity Tolerance: Sealed packaging protects from moisture
• Shelf Life: 20+ years when properly stored
• Propellant Stability: Requires periodic testing after 10+ years

Packaging and Storage

• Primary Container: Fiber tube or plastic canister
• Rounds per Container: 1 round
• Containers per Case: Typically 6-10 rounds per wooden crate
• Shipping Weight: Approximately 50-60 lbs per case
• Storage Requirements: Climate-controlled magazine, ammunition storage standards

Rate of Fire

• Sustained: 18 rounds per minute
• Maximum: 30 rounds per minute for short durations
• Practical: 10-15 rounds per minute for accuracy and crew endurance

Crew Requirements

• Minimum: 2 personnel (gunner and assistant)
• Optimal: 3 personnel (squad leader, gunner, assistant gunner)
• Ammunition Bearers: Additional personnel carry rounds

Frequently Asked Questions

Q: How does the 60mm mortar round’s effectiveness compare to hand grenades or 40mm grenade launchers?

A: The M49 60mm mortar round is significantly more powerful than hand grenades or 40mm grenades, but fills a different tactical niche. A standard M67 hand grenade contains about 6.5 ounces (184g) of Composition B, while the M49 contains 0.43 lb (195g) – roughly the same explosive content but with enhanced fragmentation design. The 40mm M406 HE grenade has only about 32g of explosive. The crucial difference is delivery method: mortars provide indirect fire at ranges up to 3,500 meters, allowing fire support against targets behind cover or defilade. Hand grenades max out at 30-40 meters, and 40mm grenades at 400 meters. The M49’s higher trajectory and greater explosive content make it far more effective against entrenched or dispersed enemy forces, though it requires a crew-served weapon system rather than individual operation.

Q: Why does the M49 have those grooves cut into the body, and how effective is the fragmentation pattern?

A: The longitudinal grooves scored into the M49’s steel body are pre-fragmentation notches designed to control the size and distribution of fragments when the explosive detonates. Without these grooves, the steel casing would shatter into irregular chunks of unpredictable size – some too large to be lethal, others too small to penetrate effectively. The pre-notching creates approximately 700-800 fragments of relatively consistent size (typically 2-10 grams each), optimized for anti-personnel effect. These fragments disperse in a roughly spherical pattern, though terrain, angle of impact, and vegetation affect distribution. The fragmentation is highly effective within the 20-30 meter lethal radius, with dangerous fragments traveling 50-70+ meters. This controlled fragmentation design was a significant improvement over earlier smooth-bodied mortar rounds and became standard for most modern munitions.

Q: What causes a mortar round to be a “dud,” and why are they so dangerous even decades later?

A: Mortar duds occur for several reasons: mechanical fuze failures (jammed safety mechanisms, broken firing pins, corroded parts), insufficient impact force (soft ground, oblique strikes, landing in mud or water), defective explosive trains (wet or degraded detonators), or improper assembly. Historical dud rates for the M49 range from 2-5%, meaning in heavy combat, hundreds or thousands of UXO might remain in an area. These are extraordinarily dangerous because the fuze may be in a partially armed state – the mechanical safeties have been removed during firing, but the final firing pin strike didn’t occur. In this condition, even slight disturbance (vibration, pressure, temperature change, corrosion) could complete the detonation circuit. Additionally, decades of environmental exposure can cause explosive compounds to become chemically unstable, making them MORE sensitive over time. Propellant can decompose, creating acidic conditions that corrode metal components unpredictably. This is why UXO from conflicts 50-70 years ago (Korean War, Vietnam) still causes casualties – the rounds remain deadly and may actually be more sensitive now than when originally fired.

Q: Can the M49 penetrate structures or vehicles, or is it purely an anti-personnel weapon?

A: The M49 is primarily an anti-personnel weapon designed to defeat soft targets through blast and fragmentation. Its steel body and 0.43 lb Composition B charge give it only limited hard-target capability. Against structures, it can penetrate light materials (wooden walls, corrugated metal, sandbags, light earthworks) and will be devastating inside enclosed spaces due to blast overpressure and ricocheting fragments. However, it cannot penetrate reinforced concrete, thick masonry, or armored vehicles. Against unarmored or lightly armored vehicles (trucks, jeeps, light APCs), a direct hit can cause damage through fragmentation and blast, potentially disabling the vehicle or killing exposed crew. Against main battle tanks or heavy APCs, it’s essentially ineffective unless striking vision ports or exposed crew. The M49’s value isn’t in penetration but in its ability to suppress, neutralize, or kill exposed personnel across a wide area. For hard targets, heavier mortars (81mm, 120mm) or dedicated anti-armor weapons are required.

Q: How do modern digital fire control systems improve the accuracy and effectiveness of decades-old M49 ammunition?

A: Modern fire control systems dramatically enhance M49 effectiveness despite the ammunition itself remaining mechanically unchanged since the 1950s. Digital systems provide: Precise ballistic computation factoring in tube wear, propellant temperature, altitude, barometric pressure, wind, and earth’s rotation (for longer ranges); Accurate targeting through GPS coordinates, laser rangefinders, and digital mapping rather than map-and-compass estimation; Rapid fire mission processing reducing time from call-for-fire to rounds-on-target from minutes to seconds; Improved ammunition management optimizing charge selection and coordinating multi-tube salvos; and Integration with drones and sensors providing real-time target location and battle damage assessment. These systems compensate for the M49’s inherent inaccuracy (CEP of 20-35m at max range) through better initial data and rapid adjustment. The result is that a 1950s-era mortar round, guided by 2020s-era computers, achieves effectiveness approaching precision weapons – not through changing the projectile, but through optimal employment. However, the M49 remains an area weapon; for true precision, guided mortar rounds like the XM395 Accelerated Precision Mortar Initiative (APMI) represent the next evolution.

Q: What makes the 60mm mortar and M49 round particularly effective in mountainous or urban terrain compared to other fire support options?

A: The 60mm mortar system excels in complex terrain for several tactical reasons. In mountainous terrain, its high-angle trajectory (typically 45-85 degrees) allows it to engage targets in deep valleys or behind ridgelines that flat-trajectory weapons (rifles, machine guns, direct-fire artillery) cannot reach. Artillery shells or tank rounds traveling on shallow ballistic arcs will impact mountain slopes before reaching targets in defilade, while the mortar “drops” rounds nearly vertically. The system’s portability (complete M224 mortar weighs only 46 lbs) means it can be manpacked to high-altitude positions inaccessible to vehicles. In urban terrain, mortars can engage targets behind buildings, inside courtyards, or on rooftops without the crew needing direct line-of-sight – crucial for survivability in cities where exposure equals death. The relatively small explosive content of the M49 provides lethality against personnel while causing less collateral damage than 155mm artillery, important in populated areas. The weapon’s responsiveness (organic to infantry companies) means fire support is immediately available without requesting divisional assets. Combined with modern fire control and the ability to rapidly displace after firing, the 60mm mortar remains highly relevant in the complex terrain of Afghanistan, Iraq, Syria, and Ukraine despite being fundamentally a World War II-era concept.

Q: How should soldiers or civilians respond if they encounter a suspected M49 or similar mortar round, and what are the indicators that it might be UXO?

A: The response to suspected UXO is critical and potentially lifesaving: STOP, MARK, REPORT – NEVER APPROACH OR TOUCH. Specific procedures include: (1) Halt immediately – do not move closer, and back away carefully if already near; (2) Mark the location – use natural features, GPS coordinates, or improvised markers (stones, branches) at a safe distance (300+ meters minimum); (3) Establish security – prevent others from approaching, especially children; (4) Report – contact military EOD, local police, or emergency services immediately with precise location and description. UXO indicators for the M49 include: damaged or deformed nose (impact marks), partially buried position, presence in areas of known conflict, corroded or discolored metal, missing or damaged fins, impact crater nearby, presence of other munitions or military debris, and location in former training areas or battlefields. Critical: Modern-looking ordnance may have been fired yesterday or 70 years ago – age is impossible to determine visually. NEVER assume a round is inert or safe based on appearance. NEVER attempt to move, photograph up-close, dig out, or inspect suspected UXO. Curiosity and souvenir-collecting have caused countless casualties. EOD technicians have specialized training, tools, and protective equipment to safely assess and neutralize ordnance. Even for military personnel, only EOD-qualified personnel should approach UXO. This information is for identification and reporting purposes ONLY, not for handling or disposal.

Q: What role does the M49 play in modern warfare given the proliferation of precision-guided munitions and drones?

A: Despite technological advances, the M49 and 60mm mortar system retain significant relevance in modern combined-arms warfare, though their role has evolved. Advantages maintaining their utility include: immediate organic fire support at company level without requesting external assets; sustained rate of fire for suppression (15-30 rounds/minute vs. minutes between airstrikes); effectiveness in weather conditions that ground drones or aircraft; minimal logistical footprint compared to precision weapons (a guided Excalibur round costs $68,000 vs. $200-400 for an M49); ability to rapidly displace, critical in counter-battery environments; and effectiveness in complex terrain where GPS-guided weapons may struggle. Modern applications have shifted toward: base defense, where mortars provide instant response to attacks; urban operations, where their high angle of fire and moderate blast radius offer advantages; counter-drone operations, using airburst fuzes; distributed operations in peer/near-peer conflict, where small units need self-sufficient fire support; and dismounted operations where heavier systems cannot deploy. The M49 isn’t replacing precision weapons but complementing them – where a $112,000 AGM-114 Hellfire fired from a $6 million Reaper drone is inappropriate or unavailable, a $300 mortar round remains highly effective. In Ukraine (2022-present), 60mm mortars see extensive use despite sophisticated weapons on both sides, demonstrating their enduring tactical value. The future likely involves integration of smart fuzing (M49A4 already features multi-option fuzes) while retaining the basic platform’s simplicity, economy, and responsiveness.
