M67 Fragmentation Hand Grenade

Ordnance Overview

The M67 Fragmentation Hand Grenade is the current standard-issue defensive hand grenade of the United States Armed Forces and has been in continuous service since 1968. Instantly recognizable by its spherical olive drab body and characteristic “baseball” size and shape, the M67 represents the culmination of decades of American hand grenade development. Unlike offensive concussion grenades that rely primarily on blast effects, the M67 is a defensive fragmentation grenade designed to produce a lethal sphere of high-velocity steel fragments extending 5 meters (15 feet) with casualty-producing effects out to 15 meters (49 feet). The grenade features a pyrotechnic delay fuze with a 4-5 second delay, giving the thrower time to seek cover after releasing the safety lever. Simple, reliable, and devastatingly effective, the M67 has seen extensive combat use from Vietnam through the Global War on Terror and remains the primary hand-thrown anti-personnel weapon in the U.S. military arsenal.

Country/Bloc of Origin

Country: United States of America
Development Period: 1958-1968
Official Adoption: 1968
Development Agency: U.S. Army Picatinny Arsenal, New Jersey
Current Status: Standard issue across all U.S. military branches
International Distribution: Supplied to NATO allies and partner nations through Foreign Military Sales
Successor To: M33 fragmentation grenade (Korean War era), M26 fragmentation grenade (Vietnam era)

Ordnance Class

Type of Weapon: Hand grenade, fragmentation
Primary Role: Defensive anti-personnel weapon
Secondary Role: Area denial, assault support
Delivery Method: Hand-thrown by individual soldiers
Activation: Pyrotechnic time-delay fuze with manual safety lever release
Category: Defensive fragmentation device
Tactical Classification: Thrown explosive ordnance

Ordnance Family/Nomenclature

Official Designations

Primary: M67 Fragmentation Hand Grenade
NSN (NATO Stock Number): 1330-01-053-2819
Federal Supply Class: 1330 (Hand Grenades)
Nomenclature: Grenade, Hand, Fragmentation, M67

Family Lineage and Related Models

Historical Development Lineage:

Mk 2 “Pineapple” Grenade (WWII/Korea era, 1918-1960s) – Cast iron body with distinctive segmented exterior
M26 Fragmentation Grenade (1950s-1970s) – Lemon-shaped, smooth body, predecessor to M67
M33 Fragmentation Grenade (1950s-1960s) – Development variant
M67 (1968-present) – Current standard, spherical design

Related Current Variants:

M67 (Standard) – Lethal fragmentation grenade with Composition B filling
M69 Practice Grenade – Training variant, black body with white markings, produces loud report and smoke but no fragments

Alternative Training Devices:

M61 Grenade Simulator – Blue metal body, produces flash-bang simulation
M116A1 Hand Grenade Simulator – Ground burst simulator for training

Special Purpose Grenades (Different Families):

M18 Colored Smoke Grenade – Signaling/screening (red, green, yellow, violet)
M84 Stun Grenade – Flashbang, special operations
AN-M8 HC Smoke Grenade – White smoke screening
M14 Incendiary Grenade – Thermite, equipment destruction

International Equivalents and Derivatives

NATO Allies Using M67:

Used by dozens of allied militaries through FMS programs
Australia, Canada, Japan, South Korea, Taiwan (among many others)

Similar Foreign Designs:

RGO (Soviet/Russian) – Similar defensive fragmentation concept, different fuze design
L109A1 (UK) – Defensive fragmentation grenade, pre-fragmented sphere
DM51 (Germany) – Defensive fragmentation, similar role

Common Names and Terminology

“Baseball Grenade” (informal, referring to size and shape)
“Frag” (military slang for fragmentation grenade)
“Frag Grenade” (common shortened term)
“M67” (standard designation)
“67” (informal shorthand)

Hazards

Primary Hazards

Fragmentation (PRIMARY LETHAL MECHANISM):

Steel Sphere Construction: Body made from 6.5mm thick steel sphere
Fragmentation Pattern: Produces approximately 1,000+ steel fragments upon detonation
Fragment Velocity: Fragments travel at approximately 1,500 meters per second (4,920 fps) initially
Lethal Radius: 5 meters (15 feet) – high probability of incapacitation or death
Effective Casualty Radius: 15 meters (49 feet) – significant injury likely
Maximum Fragment Range: 230 meters (250 yards) – fragments can travel this far though lethality decreases with distance

Fragment Characteristics:

Fragments are irregular, jagged steel pieces ranging from 2-20 grams
No pre-formed fragmentation (body naturally fractures along material stress lines)
Fragment size and velocity create severe penetrating wounds
Fragments can penetrate:
- Soft body armor at close range
- Light vehicles and thin sheet metal
- Wooden structures
- Vegetation and light cover

Blast Overpressure (SECONDARY HAZARD):

Explosive Fill: 180 grams (6.5 ounces) Composition B
Blast Effects: Within 2-3 meters, blast overpressure can cause:
- Barotrauma (lung injury from pressure wave)
- Eardrum rupture
- Internal organ damage
- Concussive effects

Danger Zones:

Kill Zone:

Radius: 5 meters (15 feet)
Effect: Near-certain incapacitation or death from multiple fragment impacts
No safe cover within this zone unless behind substantial hard cover (concrete, thick steel)

Casualty Zone:

Radius: 15 meters (49 feet)
Effect: Significant probability of incapacitating injury from fragments
Wounds: Penetrating fragment wounds requiring immediate medical attention

Safety Distance:

Minimum thrower distance: 35-40 meters (115-130 feet) recommended
Practical throwing range: 30-35 meters for average soldier
Thrower must use hard cover (wall, berm, vehicle) when possible
In open terrain: Thrower should prone out immediately after throw

Fuze Hazards

Pyrotechnic Time-Delay Fuze (M213):

Delay Time: 4-5 seconds (nominal 4.5 seconds)
Variation: ±0.5 seconds typical
No stopping: Once fuze is initiated (safety lever released), detonation is inevitable
“Cooking off” danger: Holding grenade after lever release shortens effective delay
Dud Rate: Approximately 1-2% of grenades fail to detonate (still extremely dangerous)

Safety Lever Release:

Spring-loaded: Safety lever (“spoon”) releases under spring tension when pin is pulled
Inadvertent release: Accidental pin removal without controlling lever causes immediate fuze ignition
Cannot be re-safed: Once lever releases, grenade will detonate even if pin is replaced

Environmental and Storage Hazards

Temperature Sensitivity:

Explosive stability: Composition B stable from -40°F to +145°F (-40°C to +63°C)
Extreme heat (>160°F/71°C): May cause premature detonation or cook-off
Extreme cold (<-50°F/-45°C): Fuze may become unreliable

Impact Sensitivity:

Generally stable: M67 is not impact-sensitive under normal conditions
DO NOT use damaged grenades: Dropped grenades with visible damage (dents, cracks) may have compromised fuze
Sympathetic detonation: Nearby explosions can trigger M67 detonation

Water Exposure:

Water-resistant but not waterproof
Prolonged immersion (>30 minutes) may degrade fuze reliability
Wet grenades should be dried before use if possible
Fuze may function underwater but with reduced reliability

Handling Hazards

Common Mistakes That Cause Injuries:

Forgetting to throw: Holding grenade after releasing safety lever
Short throws: Grenade lands within casualty radius of thrower
Weak throws: Insufficient distance due to poor technique or obstruction
Premature pin removal: Pulling pin before ready to throw
Obstruction strikes: Grenade hits obstacle (tree, doorframe) and bounces back
Fumbling during throw: Dropping grenade after safety lever release
Failure to take cover: Remaining exposed after throw

Booby-Trap and UXO Hazards:

Dud grenades remain extremely dangerous – explosive fill is intact
Never attempt to disassemble or “deactivate” dud grenades
Grenades can be rigged as booby traps (tripwire attached to pin)
Found grenades may be corroded, unstable, or deliberately sabotaged

Special Warnings

⚠️ CRITICAL SAFETY INFORMATION:

This is a DEFENSIVE grenade – thrower MUST use cover to avoid injury from own fragments
Never “cook off” grenade (hold after lever release) – extremely dangerous practice that has killed soldiers
Always verify target area is clear of friendlies before throwing
4-5 second delay is very short – throw immediately after releasing lever
Fragments can ricochet off hard surfaces (concrete, rock, metal)
Enclosed spaces amplify effects – grenade in room or bunker is exponentially more deadly
No exceptions to safety procedures – every shortcut risks lethal injury
Once armed, there is no “undo” – commit to the throw or take immediate cover

Fragmentation Pattern

Spherical Dispersal:

Fragments disperse in roughly spherical pattern (not directional)
Ground burst: Fragments travel upward and outward; ground absorbs some energy
Air burst: Maximum fragmentation effect if grenade detonates above ground level
Enclosed space: Fragments ricochet multiple times, creating deadly environment

Cover and Protection:

Soft cover (vegetation, sandbags): Minimal protection against fragments
Hard cover (concrete, thick steel, earth berms): Effective protection
Body armor: May stop some fragments at extended range but not reliable protection in kill zone
Vehicles: Light vehicles (trucks, Humvees) offer minimal protection; fragments penetrate doors and thin armor

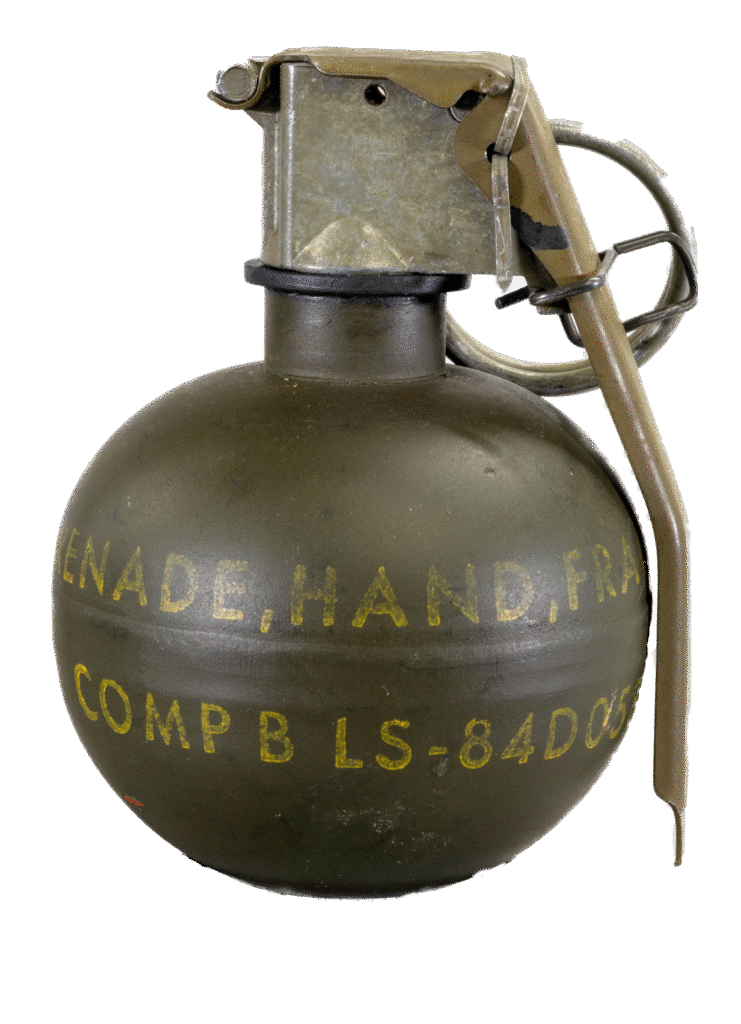

Key Identification Features

Physical Dimensions

Overall:

Diameter: 64 mm (2.5 inches) – approximately size of a baseball
Total Weight: 400 grams (14 ounces / 0.88 pounds)
Shape: Spherical

Body:

Material: Steel sphere, 6.5mm thick
Construction: Two hemispheres welded together at equator
Surface: Smooth with visible weld seam around middle

Fuze Assembly:

Protrusion: M213 fuze assembly extends from top of sphere
Height with fuze: Approximately 90mm (3.5 inches) total
Safety lever: Curved metal “spoon” held against body
Safety pin: Pull ring with split pin inserted through lever and fuze

Distinctive Characteristics

Color and Markings:

Body Color:

Olive Drab (OD) Green – standard military finish
Painted steel – textured paint finish
Smooth surface (unlike segmented WWII-era “pineapple” grenades)

Markings (Stenciled in Yellow or White):

“M67” – designation marking
Lot number – production batch identification
Manufacturer code – contractor designation
Date of manufacture – month/year code
Weight designation – sometimes marked

Fuze Markings:

“M213” – fuze designation on fuze body
Yellow band around fuze (some variants) – indicates HE filling

Training Grenade Differences:

M69 Practice Grenade: Black body with white markings “M69 PRACTICE”
Blue body indicates simulator (not live grenade)

Shape and Profile:

Instantly Recognizable Features:

Spherical body – unmistakable baseball-like shape
Central weld seam – visible ring around equator where hemispheres join
Fuze protrusion – cylindrical fuze body extends from top
Safety lever – curved metal spoon wrapped around fuze body
Pull ring – metal ring with split pin, often has flexible wire lanyard

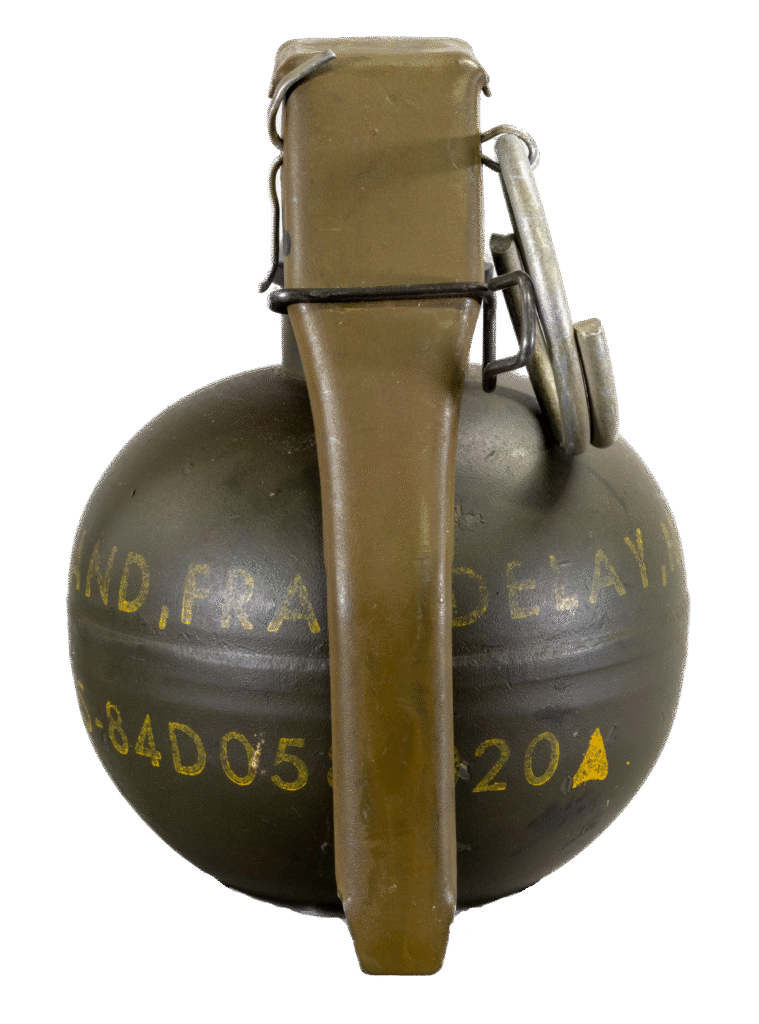

Fuze Assembly Details:

M213 Fuze Components (Visible Externally):

Safety pin – split pin inserted through holes in safety lever and fuze body
Pull ring – ring or D-ring attached to safety pin for pulling
Safety lever (spoon) – curved metal lever held against fuze body by safety pin
Striker spring (internal, not visible) – compressed when lever is in place
Fuze body – cylindrical housing threaded into grenade body

Assembly Configuration:

Fuze screws into threaded opening at top of steel sphere
Safety lever wraps around sides of fuze assembly
Pull ring typically folds flat against safety lever for storage/carrying
Pin must be completely removed before lever can release

Material Identification

Body:

Steel sphere – magnetic, heavy, solid construction
Paint finish – typically textured military enamel
Weld seam – slight raised ridge around equator

Internal (Not Visible When Intact):

Explosive fill: Composition B (RDX/TNT mixture), yellow-orange when visible
Detonator: Enclosed in fuze assembly
Pyrotechnic delay: Compressed powder column

Fuze Components:

Steel – fuze body and safety lever
Brass – safety pin and pull ring
Explosive compounds – primer, delay element, detonator (not visible externally)

Size Comparison

Relative to Common Objects:

Baseball – nearly identical size and weight
Tennis ball – similar diameter but M67 is heavier
Adult fist – comparable size
Softball – M67 is slightly smaller

Grip Consideration:

Designed to fit comfortably in adult male hand
Can be gripped securely with fingers wrapped around body
Safety lever positioned for thumb control when gripping

Packaging

Field Packaging:

Cardboard tube container – individual grenades shipped in protective cardboard cylinder
Fiber container – some variants use molded fiber protective container
Wooden crates – bulk shipping in crates of 30-50 grenades

Carrying Methods:

MOLLE grenade pouches – attach to load-bearing equipment/body armor
M1967 grenade pouches – older canvas carriers (2 grenades per pouch)
Tactical vest/body armor – integrated grenade pockets
Typically carried with safety clip or tape over safety lever for added security

Storage Markings:

Crates marked with “EXPLOSIVE 1.1D” hazard classification
UN 0285 – explosive classification code
Lot numbers, date of manufacture, quantity

Comparison with Historical Grenades

Visual Distinctions from Predecessor Grenades:

M67 vs. Mk 2 “Pineapple”:

M67: Smooth sphere, olive drab, baseball-sized
Mk 2: Segmented/grooved cast iron body (“pineapple” appearance), smaller

M67 vs. M26:

M67: Perfect sphere, smooth surface
M26: Lemon-shaped (elongated), smooth surface
Very similar in color and weight

Modern Identification:

Current-issue M67 may have less weathered paint than stored older models
Newer production may have different manufacturer codes
Storage life excellent; decades-old M67s remain functional if properly stored

Fuzing Mechanisms

The M67 employs the M213 pyrotechnic time-delay fuze, one of the most reliable and proven grenade fuzing systems in military service.

M213 Fuze System

Fuze Type:

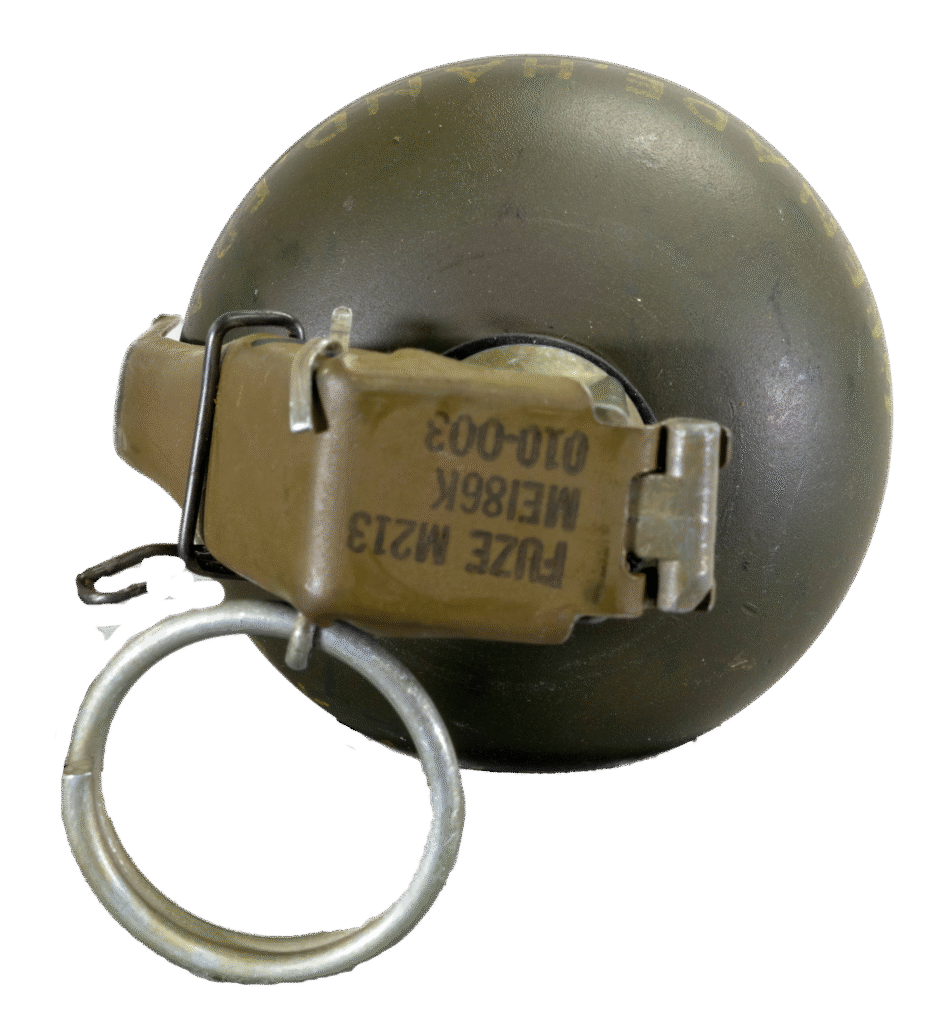

Designation: M213 Fuze
Mechanism: Percussion-initiated pyrotechnic time-delay
Category: Mechanical striker, chemical delay, electric detonator
Activation: Safety lever release triggers spring-loaded striker

Fuze Components (Internal and External)

External Components:

Safety Pin (Pull Pin):
- Material: Brass split pin
- Function: Physically prevents safety lever from moving
- Pull Ring: Metal ring attached to pin for extraction
- Design: Split pin passes through holes in safety lever and fuze body
- Removal: Requires 3-8 pounds of pull force (designed to prevent accidental removal)
Safety Lever (Spoon/Fly-Off Lever):
- Material: Steel, curved shape
- Function: Holds striker in compressed position against spring pressure
- Spring-loaded: Compressed striker spring exerts constant outward force
- Fly-off: When pin is removed and lever is released, spring propels lever away from grenade
- Tactile feedback: User can feel lever release and hear it separate from grenade

Internal Components:

Striker Spring:
- Heavy-duty compression spring
- Holds striker under tension when safety lever is in place
- Provides energy to drive striker into percussion primer
Striker (Firing Pin):
- Spring-loaded metal pin
- Held in cocked position by safety lever
- When released, strikes percussion primer with significant force
Percussion Primer:
- Impact-sensitive chemical compound
- Struck by firing pin when lever releases
- Produces flash/flame to ignite delay element
Delay Element:
- Compressed pyrotechnic powder column (black powder or similar composition)
- Burns at controlled rate for 4-5 seconds (nominal 4.5 seconds)
- Sealed in metal tube to ensure consistent burn rate
- Relatively insensitive to temperature variations
Detonator (Blasting Cap):
- Small primary explosive charge
- Initiated by delay element flame
- Generates shock wave sufficient to detonate main explosive charge
Booster Charge (if present):
- Small secondary explosive between detonator and main charge
- Ensures reliable initiation of main explosive filling

Activation Sequence

Step-by-Step Detonation Process:

Stage 1: Safed Configuration (Storage/Carrying)

Safety pin inserted through fuze and lever
Safety lever pressed against fuze body
Striker compressed and locked by safety lever
Grenade completely safe to handle
No accidental detonation possible in this state

Stage 2: Armed Configuration (Pin Removed)

Soldier grips grenade firmly, controlling safety lever with palm/fingers
Safety pin is pulled out completely (some resistance normal)
Critical: Safety lever MUST be held firmly against body
Grenade now armed but not initiated
Warning: If lever is released at this point, fuze will initiate
Can theoretically replace pin if lever has not been released (not recommended in combat)

Stage 3: Initiation (Lever Release)

Soldier releases grip on safety lever during throwing motion
Spring drives lever away from grenade – visible “fly off”
Striker is propelled forward by compressed spring
Firing pin impacts percussion primer – creates ignition spark/flame
Primer ignites delay element
Audible “pop” or “crack” may be heard at initiation (not always)
This is the point of no return – detonation is now inevitable

Stage 4: Time Delay (4-5 Seconds)

Pyrotechnic delay element burns steadily
No external indication of burning (smoke usually contained)
Timing: Approximately 4.5 seconds ±0.5 seconds
Soldier throws grenade and seeks cover during this period
Cannot be stopped – no way to interrupt the delay sequence

Stage 5: Detonation

Delay element burns through to detonator
Detonator fires – initiates with loud report
Detonator shock wave initiates Composition B main charge
High-order detonation – Composition B detonates at ~7,800 m/s
Steel body fragments into approximately 1,000+ pieces
Fragments disperse at high velocity in all directions
Total sequence: Pin pull to detonation = 4-5 seconds after lever release

Fuze Reliability and Performance

Advantages:

Mechanically simple: Few moving parts compared to complex fuze systems
Very high reliability: Function rate >98% under normal conditions
Consistent timing: 4-5 second delay well-calibrated and repeatable
Temperature stable: Functions reliably from -40°F to +145°F
Positive feedback: Lever release and flight provide tactile confirmation
No batteries: Purely mechanical/pyrotechnic operation
Long storage life: Can remain functional for decades when properly stored
Combat-proven: Millions of successful function cycles over 50+ years

Limitations:

Fixed delay: Cannot adjust timing for different tactical situations
No recall: Once lever releases, detonation is guaranteed
Dud potential: ~1-2% failure rate (usually delay element or detonator failure)
Water sensitivity: Prolonged immersion may affect fuze reliability
Manufacturing variance: Delay time can vary ±0.5 seconds between grenades

Safety Mechanisms

Primary Safety Features:

Safety Pin (Mechanical Lock):
- Physically prevents safety lever movement
- Requires deliberate pull force to remove (3-8 lbs)
- Will not accidentally remove during normal handling
- Can be secured with additional safety clip or tape for extra security
Safety Lever (Striker Block):
- Mechanically blocks striker even if pin is removed
- Must be deliberately released by loosening grip
- Spring force keeps lever firmly seated against body
Two-Stage Arming:
- Pin removal does NOT initiate fuze
- Lever must also be released
- Provides redundancy against accidental detonation

No Post-Initiation Safety:

Once lever releases, there is no way to stop detonation
Cannot be “disarmed” after initiation
Thrower must immediately throw grenade or take cover

Fuze Malfunctions

Types of Malfunctions:

1. Dud (Failure to Detonate):

Frequency: 1-2% of grenades
Causes: Defective delay element, detonator failure, moisture contamination
Danger: Dud grenade remains armed and may detonate if disturbed
Procedure: Mark location, evacuate area, report to EOD personnel

2. Short Fuze (Premature Detonation):

Frequency: Extremely rare with M213 fuze
Causes: Manufacturing defect, damage to delay element
Danger: Detonation occurs in 1-3 seconds instead of 4-5 seconds
Result: Potentially lethal to thrower

3. Long Delay:

Frequency: Rare
Causes: Degraded delay element, extreme cold
Danger: Target may have time to throw grenade back or escape
Typical variation: 6-8 seconds instead of 4-5 seconds

4. Failure to Initiate:

Frequency: Very rare
Causes: Percussion primer failure, damaged striker
Result: Lever releases but delay never starts (grenade never detonates)
Danger: Grenade may be live but unfired – extremely hazardous

Handling Malfunctions:

Never approach a thrown grenade that didn’t detonate
Wait minimum 30 seconds after expected detonation time
Mark location and report to EOD
Never attempt to pick up or inspect dud grenade
Consider all duds as armed and dangerous

Training and Practice Fuzes

M69 Practice Grenade:

Uses M228 practice fuze instead of M213
Identical activation sequence (pin, lever, delay)
No explosive filling – produces loud report and smoke cloud only
Same 4-5 second delay for realistic training
Reusable after fuze replacement (body not destroyed)

Safety in Training:

Practice grenades still produce noise and flash
Must treat with same respect as live grenades
Proper throwing technique essential even in training
Teaches muscle memory for live grenade employment

History of Development and Use

Origins and Development (1945-1968)

Post-WWII Requirements:

Following World War II, the U.S. military conducted extensive analysis of hand grenade performance in combat, identifying several areas for improvement over the venerable Mk 2 “Pineapple” grenade that had served since 1918.

Lessons Learned from WWII and Korea:

Mk 2 limitations identified:
- Cast iron body heavy and expensive to manufacture
- Segmented “pineapple” exterior caused unpredictable fragmentation
- Relatively short throwing range due to awkward shape
- Inconsistent fragment patterns and effectiveness

Development Programs (1950s):

M26 Lemon Grenade (1952):

First major redesign of U.S. hand grenade
Lemon-shaped smooth steel body – improved aerodynamics
Used M204A1 fuze (similar to later M213)
Composition B explosive filling
Improved over Mk 2 but still had issues:
- Elongated shape was less aerodynamic than hoped
- Fragment pattern still somewhat inconsistent
Saw combat: Widely used in Vietnam War

M33 Grenade (1950s-1960s):

Experimental variant developed alongside M26
Testing platform for improved designs
Never entered mass production

M67 Development (1958-1968):

Design Goals:

Maximize throwing distance through improved aerodynamics
Create consistent, predictable fragmentation pattern
Simplify manufacturing for mass production
Improve safety and reliability
Reduce cost while maintaining effectiveness

Key Innovations:

Perfect sphere shape – optimal aerodynamics and balanced flight
Uniform steel shell – predictable fragmentation along natural stress lines
Baseball size and weight – familiar dimensions for American soldiers
Simplified construction – two hemispheres welded at equator
M213 fuze – refined, highly reliable pyrotechnic delay system

Testing and Evaluation:

Extensive testing at Aberdeen Proving Ground
Field trials in Vietnam (late 1960s)
Fragmentation pattern analysis using high-speed photography
Lethality testing against various targets
Reliability testing across temperature extremes

Official Adoption:

1968: M67 officially standardized
1969: Full-scale production begins
Rapid deployment to Vietnam to replace M26
Immediate positive feedback from combat troops

Vietnam War Employment (1968-1975)

Initial Deployment (1968-1969):

M67 introduced alongside existing M26 grenades
Soldiers appreciated improved throwing characteristics
“Feels like a baseball” comment common among troops
Gradual replacement of M26 inventory

Combat Applications:

Jungle Warfare:

Used extensively in close-quarters jungle fighting
Cleared vegetation and enemy positions
Tunnel clearing: Critical for operations against Viet Cong tunnel complexes
Ambush operations: Standard equipment for patrol and ambush teams

Urban Combat:

House clearing in villages and cities
Room-clearing operations
Defensive perimeter security

Base Defense:

Foxhole and bunker defense against night attacks
Perimeter security at fire support bases
Defensive employment: Used from cover against massed attacks

Specific Tactical Innovations:

Grenade traps: Tripwire-activated defensive positions
Helicopter use: Dropped from helicopters in specific situations
Combined arms: Coordinated with machine gun and rifle fire

Effectiveness Reports:

High reliability: Function rate >98% in tropical conditions
Consistent fragmentation: Predictable casualty patterns
Soldier confidence: Troops trusted the weapon’s performance
Few malfunctions: Dud rate lower than predecessor grenades

Post-Vietnam to Present (1975-2025)

The M67 has remained in continuous service for over 55 years, seeing combat in every major U.S. military engagement since Vietnam.

1970s-1980s:

Continued production and stockpiling
Standard training for all infantry personnel
No replacement considered – M67 met all requirements

Grenada (1983):

Used in limited quantities during Operation Urgent Fury
Effective in urban and jungle environments

Panama (1989):

Operation Just Cause saw M67 employment in urban warfare
House clearing in dense urban terrain
Effective against fortified positions

Gulf War (1991):

Operation Desert Storm
Used in bunker clearing operations
Urban combat in Kuwait City
Limited use due to nature of warfare (primarily mechanized)

Somalia (1993):

Operation Gothic Serpent (Battle of Mogadishu)
Critical for urban warfare in densely populated areas
Room clearing and defensive operations
Rangers and Delta Force made extensive use

Balkans (1990s):

Peacekeeping and combat operations
Bosnia and Kosovo deployments
Used in checkpoint security and defensive operations

Global War on Terror (2001-Present):

Afghanistan (2001-2021):

Operation Enduring Freedom saw extensive M67 use
Mountain warfare applications
Cave and bunker clearing – especially effective
Compound clearing operations
Taliban defensive position neutralization
Special Operations Forces heavy users

Iraq (2003-2011):

Operation Iraqi Freedom – massive M67 employment
Urban warfare in Fallujah, Ramadi, Baghdad
MOUT (Military Operations in Urban Terrain): M67 essential tool
Clearing buildings, bunkers, and fortified positions
IED factory raids – used to destroy munitions
Counter-insurgency operations

Syria (2014-Present):

Special Operations Forces operations against ISIS
Urban combat in dense Middle Eastern cities
Bunker and tunnel clearing operations

Continuing Operations:

Remains standard issue across all U.S. military branches
Used by Army, Marine Corps, Navy (SEALs), Air Force (Security Forces)
Special Operations forces universally equipped with M67

Production and Distribution

Manufacturing:

Primary contractors: Multiple defense contractors over the decades
Current production: Ongoing to replace expended/aged inventory
Annual production: Classified, but tens of thousands produced yearly
Total production: Estimated 50-100 million M67s produced since 1968

Quality Control:

Rigorous testing of every production lot
Lot acceptance testing includes live-fire verification
Statistical sampling for reliability confirmation
Strict adherence to military specifications

International Distribution:

Foreign Military Sales (FMS): M67 supplied to dozens of allied nations
NATO allies receive M67 through standardization agreements
Partner nations in Asia, Middle East, Latin America
Licensed production: Some allies produce under license

Current Inventory:

U.S. military maintains strategic reserves of millions of M67s
Rotating stock: Older grenades tested and retired, new production added
Storage facilities throughout CONUS and overseas
War reserve stocks maintained for contingency operations

Tactical and Doctrinal Impact

Infantry Tactics:

M67 remains fundamental to small unit tactics
Clearing procedures: Essential component of room/building clearing
Assault tactics: Used to suppress enemy before close assault
Defensive operations: Key weapon for fighting position defense

Training Emphasis:

Every infantry soldier receives grenade training
Basic Combat Training: M67 familiarization and live throw
Advanced training: Tactical employment and building clearing
Special Operations: Advanced grenade techniques and unconventional employment

Doctrinal Publications:

Field Manual 3-23.30 (Grenades and Pyrotechnic Signals)
Standard Operating Procedures (SOPs) for grenade use
Safety regulations strictly enforced across military

Modern Integration:

M67 integrated with modern tactical equipment
MOLLE/PALS systems: Grenade pouches designed for body armor
Night vision operations: Techniques for grenade use with NVGs
Urban warfare doctrine: M67 central to MOUT tactics

Comparison with International Grenades

U.S. M67 vs. Soviet/Russian RGO:

M67: Smooth sphere, time-delay fuze only
RGO: Pre-fragmented sphere, impact or time-delay fuze
Lethality: Comparable fragmentation patterns
Reliability: M67 generally considered more reliable

M67 vs. German DM51:

Similar defensive fragmentation role
DM51: Uses notched wire coil for fragmentation
M67 uses solid steel body natural fragmentation
Both effective, different fragmentation mechanisms

Advantages Over Competitors:

Simplicity: M67’s design is mechanically simple and robust
Reliability: Decades of proven performance in all climates
Familiar form: Baseball-like shape intuitive for American soldiers
Cost-effective: Relatively inexpensive to produce

Future and Evolution

No Replacement Planned:

M67 remains effective and reliable for intended role
No urgent need for replacement identified
Continued production ensures adequate supply

Potential Improvements:

Research into “smart” grenades with electronic fuzes
Multi-mode grenades (fragmentation/concussion selectable)
Enhanced safety features for special operations
None have proven superior enough to justify replacing M67

Legacy:

One of the longest-serving weapons in U.S. inventory
Symbol of infantry warfare since Vietnam
Countless lives saved through effective defensive use
Will likely remain in service for decades to come

Technical Specifications

Explosive Characteristics

Explosive Fill:

Type: Composition B (RDX/TNT mixture)
Composition: 60% RDX (cyclotrimethylenetrinitramine), 39% TNT, 1% wax
Weight: 180 grams (6.5 ounces / 0.4 pounds)
Color: Yellow-orange (when visible)
Detonation Velocity: Approximately 7,800 m/s (25,600 fps)
TNT Equivalence: ~1.3:1 (Comp B is more powerful than pure TNT)
Explosive Energy: Approximately 5.3 MJ/kg

Blast Effects:

Peak Overpressure: >100 psi at 1 meter from detonation
Lethal Overpressure Range: 2-3 meters (causes barotrauma)
Concussion Effects: Significant within 5 meters

Fragmentation Characteristics

Fragment Production:

Total Fragments: Approximately 1,000-1,500 steel fragments
Fragment Weight Range: 0.5-20 grams (majority 2-5 grams)
Fragment Shape: Irregular, jagged pieces with sharp edges

Fragment Velocity and Energy:

Initial Velocity: ~1,500 m/s (4,920 fps) near grenade
Velocity at 5m: ~1,000 m/s (3,280 fps)
Velocity at 15m: ~400-600 m/s (1,312-1,968 fps)
Maximum Range: 230 meters (fragments can travel this far)

Lethality Data:

Lethal Radius (5m): ~95% probability of incapacitation
Effective Casualty Radius (15m): ~50% probability of significant injury
Fragment Penetration: Can penetrate 3-5mm steel plate at close range
Body Armor Penetration: Defeats soft armor at close range; may be stopped by hard plates depending on angle and fragment size

Fragment Pattern:

Omnidirectional: Fragments disperse in roughly spherical pattern
Ground Effect: Ground absorbs/deflects some fragments, creating shadow zone
Height Advantage: Fragments from elevated detonation travel farther
Ricochet: Fragments can ricochet off hard surfaces (concrete, rock)

Physical Specifications

Body Construction:

Material: Low-carbon steel
Wall Thickness: 6.5mm (0.25 inches)
Manufacturing: Two hemispheres deep-drawn or pressed, then welded
Weld Seam: Circumferential weld at equator
Surface Finish: Smooth painted exterior (no segmentation)

Dimensions:

Diameter: 64mm (2.5 inches)
Height (with fuze): ~90mm (3.5 inches)
Sphere Diameter: 64mm (body only)
Volume: ~137 cubic centimeters

Weight Distribution:

Total Weight: 400 grams (14 oz / 0.88 lbs)
- Steel body: ~170 grams
- Explosive fill (Comp B): ~180 grams
- Fuze assembly (M213): ~50 grams

Center of Gravity:

Balance Point: Approximately at geometric center of sphere
Flight Stability: Excellent due to balanced design
Aerodynamics: Spherical shape minimizes drag

Fuze Technical Data

M213 Fuze Specifications:

Type: Pyrotechnic delay, percussion-initiated
Delay Time: 4.0-5.0 seconds (nominal 4.5 seconds)
Delay Variance: ±0.5 seconds typical
Reliability: >98% function rate under normal conditions
Temperature Range: -40°F to +145°F (-40°C to +63°C)

Activation Forces:

Safety Pin Removal: 3-8 pounds pull force
Safety Lever Spring: ~5-10 pounds constant force
Striker Impact Energy: Sufficient to reliably fire percussion primer

Fuze Components:

Safety pin: Brass, split-pin design
Safety lever: Steel, spring-loaded
Striker: Hardened steel firing pin
Percussion primer: Impact-sensitive initiator
Delay element: Compressed pyrotechnic powder
Detonator: Primary explosive (lead azide or equivalent)

Environmental Specifications

Operating Temperature:

Function Range: -40°F to +145°F (-40°C to +63°C)
Storage Range: -60°F to +160°F (-51°C to +71°C)
Optimal Performance: 32°F to 120°F (0°C to +49°C)

Environmental Resistance:

Humidity: Functions normally in 0-100% humidity
Rain: Weather-resistant; functions reliably when wet
Immersion: Water-resistant but not waterproof; prolonged immersion (>30 min) may affect fuze
Sand/Dust: Sealed design resists particulate contamination
Salt Water: Corrosion risk to steel body over time; fuze may be affected
Ice/Snow: Functions normally in winter conditions

Altitude Performance:

Function Altitude: Sea level to 15,000+ feet
No significant performance degradation at high altitude
Fragmentation and blast effects consistent across altitude range

Storage and Shelf Life

Storage Requirements:

Storage Temperature: -60°F to +160°F (-51°C to +71°C)
Humidity Control: Preferably <70% relative humidity
Container: Wooden crates or fiber containers with desiccant
Orientation: Any orientation acceptable

Shelf Life:

Indefinite when properly stored
Inspection Intervals: Every 5-10 years for quality assurance testing
Lot Testing: Statistical sampling from storage lots
Composition B: Extremely stable, can remain potent for decades
Fuze Degradation: Minimal over time if protected from moisture

Inspection Criteria:

Visual inspection for rust, damage, paint deterioration
Fuze function testing on sample grenades
X-ray inspection for internal degradation
Chemical analysis of explosive filling (sampling)

Throwing Performance

Maximum Range (Athletic Soldier):

Standing Throw: 35-40 meters (115-130 feet)
From Prone: 20-25 meters (65-80 feet)
Female Soldier: 25-30 meters typical (80-100 feet)
Average Male Soldier: 30-35 meters (100-115 feet)

Accuracy:

Trained Soldier (10m target): ~70-80% accuracy at 20-25 meters
Combat Accuracy: Reduced due to stress, fatigue, limited exposure time
Practice Improves Accuracy: Regular training essential

Aerodynamic Performance:

Drag Coefficient: Low due to spherical shape
Stable Flight: Minimal tumbling during flight
Predictable Trajectory: Ballistic arc similar to baseball
Wind Effect: Minimal due to weight and compact shape

Comparative Data

M67 vs. Historical U.S. Grenades:

Characteristic	M67	M26	Mk 2 “Pineapple”
Shape	Sphere	Lemon	Oval (segmented)
Weight	400g	454g	595g
Explosive	180g Comp B	185g Comp B	57g TNT
Delay	4-5s	4-5s	4-5s
Lethal Radius	5m	5m	5-10m
Throw Range	35-40m	30-35m	30-35m
Era	1968-Present	1952-1970s	1918-1960s

Key Advantages of M67:

Best throwing characteristics of all U.S. grenades
Lightest weight for combat carry
Consistent fragmentation pattern
Highest reliability (>98% function rate)
Most cost-effective to produce

Safety Data

Minimum Safe Distances:

For Thrower: 35-40 meters behind hard cover recommended
For Personnel in Open: 50+ meters minimum
For Equipment/Vehicles: 25+ meters (fragment damage risk)

Cover Requirements:

Hard Cover (Required): Concrete walls, thick steel, earthen berms >1m thick
Soft Cover (Minimal Protection): Sandbags, wooden structures, vehicles
NO Cover (Extremely Dangerous): Prone position at 35+ meters minimum

Blast/Fragment Hazards by Distance:

0-5m: Near-certain death/incapacitation (kill zone)
5-15m: High probability of serious injury (casualty zone)
15-50m: Possible injury from fragments (danger zone)
50-230m: Low probability injury from long-range fragments

Frequently Asked Questions

Q: Why is the M67 considered a “defensive” grenade, and how does this affect how soldiers use it?

A: The M67 is classified as a defensive fragmentation grenade because its casualty-producing radius (15 meters) significantly exceeds the distance most soldiers can throw it (30-35 meters average). This classification reflects a fundamental tactical reality: the thrower is in danger from their own grenade’s fragments and must use substantial cover to avoid injury. “Defensive” means the grenade is designed for use by troops in protected positions (trenches, buildings, bunkers) who can throw the grenade and immediately take cover behind hard obstacles like concrete walls, thick earthen berms, or armored vehicles. Fragments from an M67 can travel with lethal velocity to 15 meters and with injurious velocity beyond that—if you throw a grenade 30 meters but remain standing in the open, you’re still within the casualty radius when it detonates 4-5 seconds later. Contrast this with “offensive” grenades like the German Stielhandgranate, which rely primarily on blast/concussion rather than fragmentation, allowing assault troops to throw them and immediately advance through the blast zone without fragment danger. In practice, this classification means soldiers are trained to: (1) Always use hard cover when employing the M67, (2) Throw and immediately get behind cover (wall, vehicle, berm), (3) Never use the M67 in situations where cover is unavailable unless absolutely necessary, and (4) Maintain awareness that even at maximum throwing range, you’re potentially in the fragment danger zone. The defensive classification doesn’t mean the grenade can’t be used offensively—it’s routinely used in assaults and room-clearing—but it does mean that using it without cover risks injury to the thrower from their own weapon. Modern infantry doctrine emphasizes this safety consideration while recognizing the M67’s devastating effectiveness when properly employed.

Q: What is “cooking off” a grenade, and why is this practice extremely dangerous and prohibited?

A: “Cooking off” refers to the dangerous practice of holding a grenade after releasing the safety lever (thereby initiating the 4-5 second fuze delay) before throwing it, with the intent of reducing or eliminating the time the enemy has to react before detonation. The theory is that by holding the grenade for 1-2 seconds after the fuze ignites, the grenade will detonate immediately or shortly after landing, preventing enemies from throwing it back or taking cover. This practice is explicitly prohibited in U.S. military doctrine and is exceptionally dangerous for several critical reasons: First, the M67’s fuze has a nominal 4-5 second delay with a variance of ±0.5 seconds, but manufacturing defects can produce “short fuzes” that detonate in 2-3 seconds (or even less in rare cases)—if you’re holding a grenade expecting 4.5 seconds but it has a 3-second fuze, it detonates in your hand, killing or severely wounding you. Second, even without defects, the ±0.5 second variance means you cannot precisely time the delay; holding for 2 seconds thinking you have 2.5 seconds remaining might leave you with 1.5 seconds or even less. Third, combat stress degrades time perception—seconds feel longer or shorter under stress, making it impossible to accurately judge when to release. Fourth, if you’re shot, wounded, or startled while holding a “cooking” grenade, you may drop it at your feet or among friendly troops. Fifth, there’s simply no reliable way to know if your specific grenade has a normal or short fuze until it detonates. The U.S. military documented numerous casualties—including deaths—from cooking off grenades, particularly during WWII and Vietnam when the practice was more common. Modern training explicitly forbids this technique and teaches soldiers to throw immediately upon releasing the safety lever. The few tactical situations where reduced reaction time is critical (like dropping grenades into bunkers through small apertures) are better handled by proper technique and positioning rather than risking your life with cooking off. The phrase “cooking off” itself derives from the idea of letting the fuze “cook” or burn partially before throwing, but this metaphor understates the lethality of the practice. Bottom line: never, under any circumstances, hold a grenade after releasing the safety lever longer than absolutely necessary to complete your throwing motion—throw immediately and seek cover.

Q: What should you do if you encounter an M67 grenade that failed to detonate (dud), and why is it so dangerous?

A: Encountering a dud M67 grenade is an extremely hazardous situation that requires strict adherence to explosive ordnance disposal (EOD) safety procedures. A dud is a grenade that was armed (safety lever released, fuze initiated) but failed to detonate after the expected 4-5 second delay. Dud grenades remain incredibly dangerous because: (1) The fuze may have partially functioned—the delay element might still be burning slowly or the detonator may be in an unstable state, (2) The grenade contains 180 grams of Composition B high explosive that is fully capable of detonating if disturbed, (3) The fuze mechanism may be damaged in a way that makes it more sensitive to shock or movement than a normal grenade, and (4) There’s no way to determine the grenade’s condition without specialized equipment. If you encounter a dud M67 grenade (whether you threw it or found it): (1) Immediately take cover behind substantial hard cover and maintain distance of at least 50 meters—the grenade may still detonate with a long delay, (2) Wait a minimum of 30 seconds (some procedures call for 2 minutes) after the expected detonation time before taking any action, (3) Do not approach, touch, or attempt to inspect the grenade under any circumstances, (4) Mark the location from a distance using visible markers (chem light, flags, spray paint), (5) Report the dud immediately to your chain of command, who will notify EOD personnel, (6) Establish a cordon preventing anyone from approaching the area (minimum 50-100 meters), and (7) Wait for qualified EOD technicians to render the grenade safe or conduct a controlled detonation. Why is this so important? There are documented cases of soldiers being killed or wounded by picking up or kicking dud grenades that detonated when disturbed. The fuze might have a burned-through delay element that failed to ignite the detonator properly, leaving it in a hair-trigger state. Temperature changes, vibration, or movement can cause delayed detonation. Even experienced EOD technicians use remote handling methods and protective equipment when dealing with dud grenades. Never assume a grenade is safe just because it didn’t detonate—the same explosive that makes the M67 effective makes dud grenades potentially lethal. In training environments, practice grenades and live grenades are carefully controlled, but if you encounter what appears to be a dud in training, follow the same procedures. The military’s dud procedures exist because over decades of experience, too many soldiers have been injured or killed by treating dud ordnance carelessly.

Q: How does the M67’s spherical “baseball” shape improve throwing performance compared to earlier grenade designs?

A: The M67’s spherical design represents the culmination of decades of research into optimal hand grenade aerodynamics and ergonomics, offering significant advantages over earlier designs like the Mk 2 “pineapple” (ovoid/egg-shaped with segmented exterior) and the M26 “lemon” grenade (elongated ellipsoid). Aerodynamic advantages: A sphere is the shape with the lowest possible drag coefficient for its volume—it experiences minimal air resistance during flight, allowing it to travel farther for the same throwing force. The symmetrical shape eliminates tumbling; earlier grenades like the Mk 2 would tumble unpredictably during flight due to their asymmetric shape, reducing range and accuracy. The sphere’s balanced design means there’s no “right” or “wrong” orientation during the throw—it flies consistently regardless of how you release it. In contrast, the M26’s elongated “lemon” shape could flutter or wobble if thrown with poor technique, and the Mk 2’s irregular segmented surface created turbulent airflow that reduced range. Ergonomic advantages: The M67’s 64mm diameter matches the size of a baseball (approximately 73mm), which is familiar to most American soldiers and fits comfortably in the average adult hand. This familiar form factor requires less training—soldiers instinctively know how to grip and throw a baseball-sized sphere. The smooth surface allows a secure grip without the discomfort of the Mk 2’s raised segments, which could be painful to grip tightly. The balanced weight distribution (center of gravity at the geometric center) produces intuitive throwing mechanics identical to throwing a ball. Performance data demonstrates these advantages: Average soldiers can throw an M67 approximately 35-40 meters, compared to 30-35 meters for an M26 and 25-30 meters for the heavier Mk 2. More importantly, the M67’s accuracy is significantly better—the predictable flight path allows soldiers to consistently land grenades within 2-3 meters of their aim point at combat ranges (20-25 meters), while earlier designs’ tumbling reduced accuracy. Tactical implications: The increased range and accuracy translate directly to survivability—soldiers can engage targets from greater distances, reducing exposure to enemy fire. The consistent flight characteristics allow reliable employment in critical situations like dropping grenades through windows or bunker apertures where precision matters. The intuitive throwing motion reduces training time and allows muscle memory to develop quickly. Interestingly, the sphere shape was not adopted earlier due to manufacturing challenges—spherical shells require deep-drawing or hemisphere pressing techniques that weren’t economically viable until mid-20th century manufacturing advances. The M67’s success validated the sphere as the optimal grenade shape, and most modern grenades worldwide now use spherical or near-spherical designs.

Q: Can fragments from an M67 grenade penetrate modern body armor, and what factors affect fragment lethality?

A: The M67’s lethality against body armor is complex and depends on multiple factors including fragment size, velocity, impact angle, range, and armor type. Against soft body armor (Kevlar/aramid): M67 fragments have significant penetration capability at close range (5-15 meters). Soft armor rated for NIJ Level IIIA (pistol rounds) may stop some smaller fragments at extended ranges, but within the 5-meter kill zone, multiple fragment impacts will defeat soft armor through cumulative damage and will certainly penetrate unarmored areas (neck, face, extremities, groin). Fragments weighing 2-5 grams traveling at 1,000+ m/s carry substantial kinetic energy—comparable to or exceeding many pistol rounds. Against hard armor plates (ceramic, steel, or composite): Modern hard armor (NIJ Level III/IV) designed to stop rifle rounds will generally stop M67 fragments striking the plate directly. However, critical considerations remain: (1) Coverage area—hard plates typically cover only the torso, leaving arms, legs, neck, face, and sides vulnerable, (2) Multiple impacts—an M67 produces 1,000+ fragments; even if plates stop fragments hitting the chest, 20-30 fragments may strike the target simultaneously across unarmored areas, (3) Plate failure from cumulative impacts—ceramic plates can crack or fail after multiple high-energy impacts in the same area, (4) Backface deformation—even stopped fragments transfer energy through the plate, causing blunt trauma, and (5) Fragment angles—fragments striking at oblique angles may slip around plate edges or hit gaps in armor. Range considerations: At 5 meters from detonation, fragments retain maximum velocity (~1,000-1,500 m/s) and energy, giving them the best penetration capability—even hard armor may be compromised by multiple simultaneous impacts. At 15 meters, fragment velocity decreases to ~400-600 m/s, reducing penetration but still causing severe injuries to unarmored areas. Beyond 25 meters, fragments slow significantly and body armor becomes increasingly effective, though unarmored areas remain vulnerable. Real-world lethality: Historical data from Iraq and Afghanistan shows that even armored personnel suffer significant casualties from grenades, primarily from: (1) Fragmentation wounds to unarmored areas—extremities, neck, face, groin, (2) Multiple fragment impacts overwhelming local armor protection, (3) Blast overpressure within 3-5 meters causing internal injuries regardless of armor, and (4) Secondary effects like being knocked down, stunned, or temporarily blinded, making the target vulnerable to follow-up fire. Tactical implications: The M67 remains highly effective against even well-armored opponents because it attacks the entire body, not just the armored torso. Modern combined-arms doctrine treats grenades as effective against body armor when used properly—the key is to position grenades to maximize fragment dispersion and exploit unarmored areas. The M67’s omnidirectional fragmentation pattern means at least some fragments will strike vulnerable areas regardless of how the target is oriented. While body armor significantly improves survivability compared to unarmored targets, it does not render grenades ineffective—proper tactical employment (confined spaces, multiple grenades, combined with direct fire) remains highly lethal against armored adversaries.

Q: Why does the M67 use a fixed 4-5 second delay rather than an impact fuze, and what are the tactical implications?

A: The M67’s use of a pyrotechnic time-delay fuze rather than an impact fuze is a deliberate design choice based on extensive combat experience and tactical considerations, despite the apparent appeal of instant detonation on impact. Safety and reliability reasons: (1) Impact fuzes are inherently more dangerous to the user—if a grenade with an impact fuze strikes an obstacle during throwing (tree branch, doorframe, wall corner), it can detonate at or near the thrower, causing friendly casualties. This is not theoretical—German WWII impact-fuzed grenades caused numerous friendly-fire incidents. (2) Impact fuzes are mechanically complex and more prone to malfunction than simple pyrotechnic delays—they require precisely-calibrated inertial mechanisms that must distinguish between throwing acceleration and impact, adding failure points. (3) Environmental sensitivity—impact fuzes can be triggered by rough handling, drops, or vehicle vibration, creating safety hazards during transport and storage. (4) The 4-5 second delay provides a built-in safety margin—even if the grenade is fumbled during throwing, there are precious seconds to kick it away or take cover before detonation. Tactical advantages of time delay: (1) Allows grenades to roll or bounce into position—the delay lets grenades be thrown into bunkers, around corners, through windows, or down stairwells where they settle into optimal position before detonating. An impact fuze would detonate on first contact with ground or wall, potentially outside the target area. (2) Enables cooking (if authorized/necessary) for specific tactical situations—though officially prohibited, the delay does provide the theoretical option of reduced enemy reaction time in critical circumstances. (3) Psychological effect—the “tick-tick-tick” of a live grenade for 4-5 seconds induces panic and forces enemies to flee or take cover, degrading their combat effectiveness even before detonation. (4) Permits multiple grenade coordination—in team assaults, multiple soldiers can throw grenades sequentially timed to create saturation effects. (5) Reduces risk of premature detonation—grenades can be thrown through vegetation, obstacles, or from prone positions without risk of impact-detonating on foliage or ground near the thrower. Disadvantages of time delay: (1) Enemy reaction time—alert enemies may throw the grenade back, take cover, or escape the kill zone during the delay (though this is difficult in practice given the stress and limited time). (2) Position change—moving targets may leave the area before detonation. (3) Alerting enemy—the sound of the grenade landing gives enemies warning. Why 4-5 seconds specifically? This interval represents optimal balance: Long enough for the thrower to release the grenade and take cover safely, short enough to minimize enemy reaction time, and sufficient for the grenade to settle into position. Shorter delays (<3 seconds) risk injuring the thrower; longer delays (>7 seconds) give enemies too much time to react or escape. The ±0.5 second variance ensures grenades don’t detonate simultaneously when multiple are thrown, creating sequential explosions that prevent enemies from moving between detonations. Alternative designs exist: Some nations use dual-mode fuzes (Soviet RGO has both impact and time-delay), and some special operations forces use impact-fuzed grenades for specific missions. However, for general infantry use, the time-delay fuze has proven optimal over 100+ years of grenade warfare. The M67’s continued use of this proven fuze design reflects the reality that in most tactical situations, the safety and reliability advantages of time-delay fuzes far outweigh the marginal tactical benefits of instant detonation.

Q: What happens to surplus or expired M67 grenades, and are old grenades still dangerous?

A: The lifecycle management of M67 grenades involves careful tracking, periodic inspection, and eventual disposal, but old M67 grenades remain fully lethal and dangerous indefinitely when properly stored. Storage and shelf life: M67 grenades have an essentially indefinite shelf life when stored under proper conditions (temperature-controlled, humidity-controlled facilities with desiccant). The Composition B explosive filling is extremely stable and does not degrade significantly over decades. Grenades manufactured in the 1970s-1980s that were properly stored remain fully functional today. The steel body is corrosion-resistant when painted and kept dry. The M213 fuze’s pyrotechnic components remain stable for decades. Inventory management: The U.S. military maintains rotating stockpiles where older grenades are periodically inspected, tested, and either returned to service or demilitarized. Lot Acceptance Testing (LAT) is conducted every 5-10 years on sample grenades from storage lots—these samples are live-fired to verify reliability, and if performance is acceptable, the entire lot is recertified for continued service. X-ray inspection may be performed to detect internal degradation without destroying grenades. Visual inspection identifies surface corrosion, paint deterioration, or physical damage. Reasons for disposal: Grenades are removed from service when: (1) Physical damage—dents, cracks, corrosion, or compromised integrity, (2) Fuze degradation—moisture infiltration or visible corrosion on fuze assembly, (3) Failed testing—if LAT samples show reduced reliability or performance, (4) Obsolete production methods—some very old grenades may be from contractors no longer in business, making quality verification difficult, or (5) Excess inventory—strategic decisions to reduce stockpile size. Demilitarization process: When grenades are designated for disposal, they undergo demilitarization (demill) through several methods: (1) Open detonation—grenades are transported to approved disposal sites (often remote military ranges) and detonated in controlled burns, (2) Explosive removal—some facilities chemically treat or melt out the Composition B filling for recovery and reuse, then scrap the steel bodies, (3) Controlled incineration—specialized incinerators safely burn explosive materials, or (4) Donation/sales—some allied nations receive U.S. surplus grenades through Foreign Military Sales, extending their service life. Dangers of “expired” or old grenades: Old grenades found outside military control (battlefields, civilian property, collected as “souvenirs”) are extremely dangerous because: (1) Storage conditions are unknown—moisture, temperature extremes, and physical damage may have destabilized components, (2) Corrosion can make fuzes unpredictable or more sensitive, (3) The explosive filling remains potent—Composition B does not significantly degrade, so a 50-year-old grenade has the same explosive power as new, (4) Fuze delay time may be affected by degradation, potentially causing shorter-than-expected delays, and (5) Physical damage invisible from outside may compromise structural integrity. Found/recovered M67 grenades: Vietnam-era M67s are still occasionally discovered in Southeast Asia; WWII-era predecessors (Mk 2) are found in Europe and Pacific islands; surplus grenades stolen or lost from military inventories appear periodically. All such grenades must be treated as fully armed and dangerous—report findings to law enforcement/military EOD immediately, never handle or move suspected ordnance. Even grenades missing obvious components (safety pin removed, lever missing) may have been modified into booby traps. Bottom line: Properly stored military M67 grenades remain functional and safe indefinitely. Old grenades outside proper storage or control should be treated as extremely hazardous and handled only by qualified EOD personnel. The longevity of the M67’s explosive components means there’s no such thing as a “safe” or “expired” M67—they remain lethal weapons regardless of age.

Q: How is the M67 employed in modern urban warfare and room-clearing operations, and what special considerations apply?

A: The M67 plays a critical role in modern MOUT (Military Operations in Urban Terrain), particularly in building and room-clearing operations where close-quarters combat and limited visibility create extreme danger. However, urban grenade employment requires specialized techniques and awareness of unique hazards. Standard room-clearing employment: In Military Operations in Urban Terrain, the M67 is typically used as part of a systematic clearing procedure: (1) Assessment—clearing team identifies target room and confirms no friendlies inside, (2) Preparation—designated grenadier prepares M67 (removes safety pin while controlling lever), (3) Warning—team leader confirms “Frag out!” to alert all friendly personnel, (4) Delivery—grenadier throws or places grenade into room through doorway or window, (5) Cover—entire team takes cover behind walls, away from doorway/windows (minimum 3-5 seconds), (6) Detonation—grenade detonates inside room, (7) Immediate entry—team rushes room within 2-3 seconds of detonation to engage any surviving enemies before they recover, (8) Clearance—team systematically clears room and secures area. Special techniques for urban environments: Corner throws—grenades can be thrown around corners without exposing the thrower by using bank shots off walls, though this requires practice and risks short throws. Window delivery—throwing grenades through windows from outside, though this risks hitting window frame and grenade bouncing back toward thrower. Stairwell employment—grenades can be rolled or thrown down stairwells to clear lower floors; gravity assists and confines effects to stairwell. Multi-story buildings—grenades can be dropped through holes in floors or thrown upward into higher floors. Breaching support—grenades thrown immediately after explosive or mechanical breaching to stun defenders. Unique urban hazards: (1) Overpressure amplification—enclosed spaces (rooms, hallways, bunkers) dramatically amplify blast effects; what might be survivable in open terrain becomes lethal in confined spaces due to pressure wave reflection off walls, (2) Fragment ricochet—fragments bounce multiple times off concrete walls, floors, and ceilings, creating unpredictable danger; fragments may exit through doorways at high velocity, endangering friendly forces outside, (3) Structural damage—repeated grenade use weakens buildings; ceilings may collapse, floors may fail, and walls may be compromised, (4) Civilian casualties—urban environments often contain civilians; positive identification of targets is critical, and grenades cannot distinguish between combatants and non-combatants, (5) Friendly fire risk—in chaotic urban fighting, friendly forces may be in adjacent rooms or buildings; fragment penetration through walls creates fratricide risk, (6) Multi-room effects—open floor plans, connected rooms, or thin walls mean grenade effects extend beyond intended target room, and (7) Backblast danger—thrower and team must have solid cover; interior walls may not provide adequate protection against fragments. Modern tactical considerations: Rules of Engagement (ROE)—many modern conflicts have strict ROE limiting grenade use due to civilian casualty concerns; positive identification of hostile targets may be required before grenade employment. Collateral damage—structure preservation may be mission-essential (intelligence sites, cultural landmarks), limiting grenade use. Hostage situations—grenades cannot be used when hostages or civilians are present in target area. Precision requirements—modern urban warfare often requires discriminate engagement; grenades are inherently indiscriminate within their casualty radius. Alternative methods—in some situations, door charges, flashbangs (M84 stun grenades), or direct small-arms fire are preferred over M67 fragmentation grenades. Training emphasis: Modern urban warfare training includes extensive grenade practice in shoot houses and training facilities that replicate urban structures. Soldiers practice throwing techniques, cover positions, and timing to minimize friendly-fire risk. Live grenade exercises in controlled urban training environments are conducted to familiarize troops with actual effects and risks. Stress inoculation training prepares soldiers for the chaos of urban combat where grenade employment decisions must be made under extreme pressure. Combined arms integration: M67 employment in urban warfare is almost never isolated—it’s coordinated with breaching charges, suppressive fire from automatic weapons, sniper overwatch, and armored vehicle support. The grenade serves as one tool in a comprehensive urban assault methodology. Lesson from recent conflicts: Combat in Iraq (Fallujah, Ramadi) and Afghanistan (numerous urban engagements) demonstrated that M67 grenades remain devastating in urban environments but require exceptional fire discipline and precise employment to avoid friendly casualties and civilian harm. Units that train extensively in urban grenade techniques have significantly higher success rates and lower casualty rates than units relying on improvisation. The modern urban battlefield demands that soldiers understand not just how to throw a grenade, but when, where, and whether a grenade should be employed at all—judgments that can mean the difference between mission success and tragedy.

Safety Notice

⚠️ WARNING: All information provided is for educational and identification purposes only.

Never approach, handle, or attempt to move any suspected ordnance, including M67 grenades
All unexploded ordnance (UXO) and dud grenades must be treated as armed and extremely dangerous
Suspected ordnance should be reported immediately to military authorities, law enforcement, or explosive ordnance disposal (EOD) teams
Do not attempt to defuse, disarm, or recover military ordnance without proper training and authorization
This lesson is intended for military training, EOD education, and historical understanding—not for unauthorized ordnance handling

If you discover a suspected M67 grenade or similar ordnance:

Do not touch or move the item
Evacuate the immediate area (minimum 50 meters)
Mark the location from a safe distance
Report to authorities immediately (police, military, or emergency services)
Prevent others from approaching the area
Never assume an old or damaged grenade is “safe” or inert

Collecting and handling warnings:

Even “demilitarized” or “training” grenades may contain residual explosives or functional components
Possession of live or functional military ordnance is illegal in most jurisdictions
Professional verification by qualified EOD personnel is required before any grenade can be considered safe
The M67’s explosive filling (Composition B) remains potent indefinitely
Old grenades may be MORE dangerous than new ones due to corrosion and degradation making fuzes unstable

Safety Warning

This document is for educational and identification purposes only. All grenades and explosive ordnance are extremely dangerous and should only be handled by trained military personnel or explosive ordnance disposal (EOD) specialists. Unexploded ordnance (UXO) can remain lethal for decades and may be unstable. If you encounter suspected ordnance, do not touch it—mark the location, evacuate the area, and contact military or law enforcement authorities immediately.

The information presented here is intended for military professionals, historians, collectors (handling inert training replicas only), and educational purposes. Never attempt to disarm, modify, or handle live ordnance.
