MON-50 Directional Anti-Personnel Mine

Ordnance Overview

The MON-50 is a Soviet-designed directional fragmentation anti-personnel mine that projects a lethal fan of steel fragments in a predetermined direction. As one of the most widely produced and deployed directional mines in history, the MON-50 represents the Soviet answer to the American M18 Claymore mine, though with distinct design characteristics. It remains in active use across numerous countries and conflict zones worldwide.

Country/Bloc of Origin

• Country: Soviet Union (USSR)
• Development Period: 1960s
• Current Production/Use: Russia and former Soviet states, widely exported and copied
• International Variants: Licensed and unlicensed production in multiple countries including China, North Korea, and various Eastern European nations

Ordnance Class

• Type: Directional fragmentation mine
• Primary Role: Anti-personnel
• Secondary Characteristics: Command-detonated or trip-wire activated
• Deployment Method: Surface-emplaced, manually positioned
• Target: Infantry and unarmored vehicles in open areas

Ordnance Family/Nomenclature

• Primary Designation: MON-50 (МОН-50)
• Name Derivation: MON = “Mina Oskolochnaya Napravlennaya” (Directional Fragmentation Mine); 50 = nominal fragment dispersal angle of 50 degrees
• Related Variants:
  • MON-90: Larger version with 90-degree dispersal pattern
  • MON-100: Further enlarged variant
  • MON-200: Largest in the series
• Foreign Copies: Type 66 (China), various unlicensed copies
• NATO Reporting: No specific NATO designation; typically referred to by Soviet nomenclature

Hazards

Primary Hazard Profile

• Fragmentation: The primary hazard consists of approximately 485-540 steel spherical fragments (ball bearings) measuring 5.5mm in diameter
• Kill Radius:
  • Lethal range: 50-60 meters in the primary direction
  • Casualty-producing range: up to 100 meters
  • Secondary fragmentation from casing: 25-40 meters
• Dispersal Pattern: 50-degree horizontal arc, 16-degree vertical arc

Sensitivity and Activation Hazards

• Pressure Sensitivity: None (not pressure-activated)
• Movement Sensitivity: Low when properly emplaced; higher if anti-handling devices are attached
• Fuze Sensitivity: Depends on fuzing method employed
• Environmental Degradation: Plastic components can degrade over time; metal fragments may corrode

Special Hazards

• 360-Degree Danger Zone: While directional, the mine presents dangers in all directions during detonation
• Blast Overpressure: Significant within 10 meters even outside primary fragmentation arc
• Anti-Handling Devices: May be fitted with secondary fuzes to prevent disarming
• UXO Considerations: Electric blasting caps may retain functionality for extended periods; deteriorating explosives may become unstable

Safety Warnings

⚠️ CRITICAL SAFETY INFORMATION:

• All ordnance, including the MON-50, should be considered extremely dangerous
• Never approach, touch, or attempt to move suspected ordnance
• Maintain a minimum safe distance of 300 meters from suspected mines
• Report all suspected ordnance to military EOD or local authorities immediately
• This information is for educational and identification purposes only

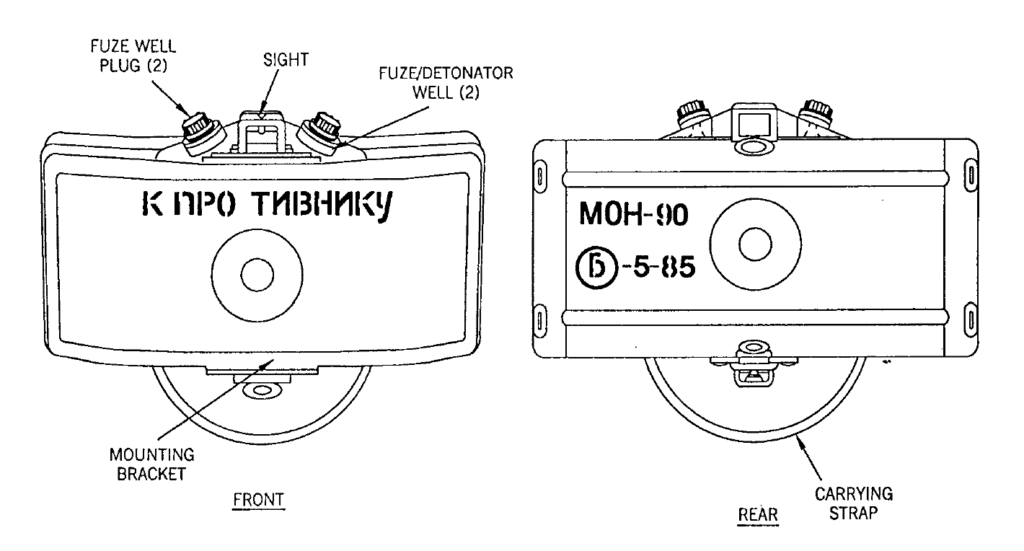

Key Identification Features

Physical Dimensions

• Overall Length: 225mm (8.9 inches)
• Overall Height: 105mm (4.1 inches)
• Overall Width: 155mm (6.1 inches)
• Weight: 2.0 kg (4.4 lbs) when loaded

Visual Characteristics

Body Construction:

• Curved, convex rectangular plastic casing (front face)
• Dark olive green or black plastic material most common
• Some variants feature brown or camouflage coloring
• Smooth front surface with slight convex curve

Distinctive Features:

• Rectangular shape with rounded corners
• Prominent mounting/stake bracket at bottom center
• Two small threaded ports on the rear face for detonator insertion
• Embossed or stamped text on rear: “МОН-50” and manufacturing data
• Front face is smooth; rear face has mounting provisions and text

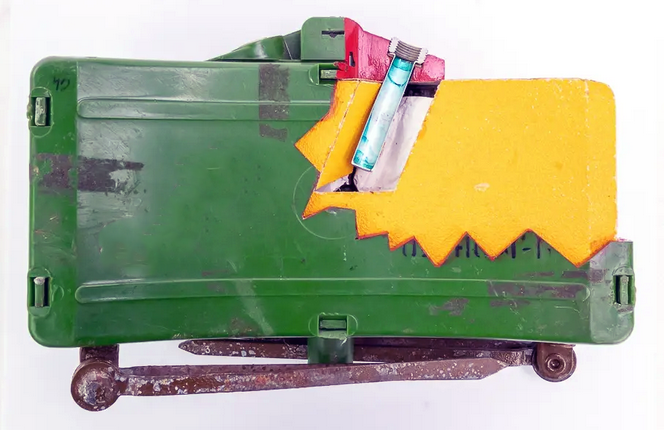

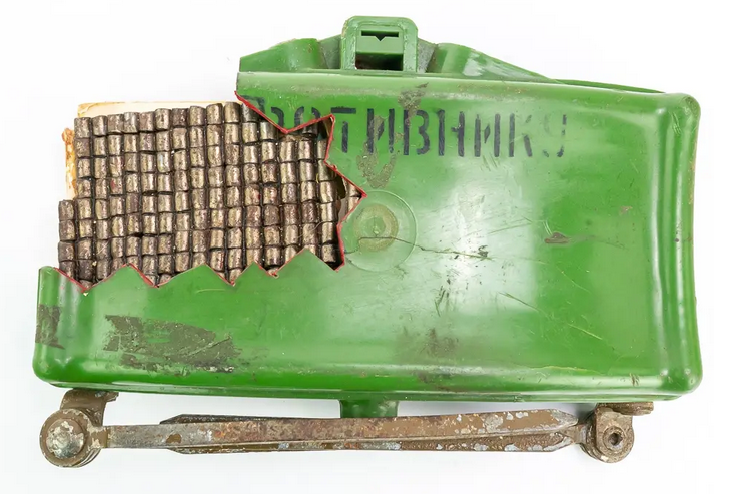

Fragment Layer:

• The front face conceals a resin-embedded layer of steel ball bearings
• Not visible from exterior when intact
• Creates characteristic curved fragmentation pattern

Stake and Mounting:

• Typically deployed with a steel stake or mounting bracket
• Stake may be wooden or metal
• Height adjustment possible via bracket system
• Aimed using simple sight line or directional indicators

Material Composition

• Casing: Molded plastic (polyethylene or similar polymer)
• Fragments: Hardened steel ball bearings, 5.5mm diameter
• Explosive: Cast TNT or similar high explosive (700g)
• Fuze Well: Threaded metal insert in rear casing

Markings and Text

• Cyrillic markings “МОН-50” on rear face
• Manufacturing plant codes
• Production date (may be present)
• Lot numbers and batch information
• Some export versions may have different marking schemes

Fuzing Mechanisms

The MON-50 accepts multiple fuzing options, providing tactical flexibility in employment. The mine does not include an integral fuze and must be fitted with one of several compatible systems.

Standard Fuzing Options

1. Command-Detonated (Electric Fuze)

• Type: MUV series electric blasting cap
• Activation: Manual, via firing cable connected to command post
• Range: Up to 500+ meters with proper wire
• Advantages: Precise timing, selective targeting, recoverable if unused
• Power Source: Hand generator (PMN-3, PMR-3) or battery source
• Arming: No inherent arming delay; controlled by operator

2. Trip-Wire Activated (Pull Fuze)

• Type: MUV series pull fuze or VP-13 mechanical fuze
• Activation: Trip wire under 3-8 kg tension
• Configuration: Wire attached to fuze, strung across likely approach routes
• Sensitivity: Adjustable based on wire tension and fuze selection
• Range: Wire length typically 10-50 meters

3. Anti-Handling Devices (Optional)

• Type: Various tilt, pressure, or trembler switches
• Purpose: Prevent mine removal or neutralization
• Effect: Detonates mine if moved or disturbed

Fuze Installation

• Fuze is inserted into threaded well on rear face of mine
• Detonator cap is screwed into explosive charge cavity
• Wire or trip-wire attached to fuze mechanism
• Safety pins removed after emplacement and aiming

Arming and Safety Procedures

During Emplacement:

1. Position mine on stake or mount
2. Aim front face toward target area
3. Insert selected fuze with safety engaged
4. Connect firing wire or trip-wire
5. Remove safety devices only after personnel cleared
6. Mark minefield boundaries (military protocol)

Safety Features:

• Safety pins or clips on fuzes prevent accidental detonation
• Physical removal of detonator renders mine inert (if no anti-handling device present)
• No self-destruct mechanism in standard configuration

Shelf Life:

• Explosive stable for decades when properly stored
• Electric blasting caps may degrade after 10-20 years
• Environmental exposure accelerates deterioration

History of Development and Use

Development Background

The MON-50 was developed in the Soviet Union during the 1960s as part of a comprehensive defensive mining program. Soviet military planners recognized the value of directional mines demonstrated by the American M18A1 Claymore during the Vietnam War and sought to develop indigenous capabilities with distinct design characteristics.

Design Philosophy:

• Emphasis on simplicity and mass production
• Use of readily available materials (plastic, TNT, steel ball bearings)
• Compatibility with existing Soviet fuzing systems
• Tactical flexibility through multiple fuzing options

Development Timeline:

• Early 1960s: Initial design and testing
• Mid-1960s: Adoption by Soviet armed forces
• Late 1960s: Full-scale production begins
• 1970s: Export to Warsaw Pact and allied nations

Operational History

Cold War Era:

• Standard defensive mine for Soviet and Warsaw Pact forces
• Integrated into defensive doctrine for static positions and ambushes
• Used extensively in border fortifications along Iron Curtain
• Exported to Soviet client states in Asia, Africa, and Middle East

Regional Conflicts:

• Afghanistan (1979-1989): Deployed by Soviet forces for convoy protection and base defense; also used by Mujahedeen after capture
• Chechen Wars (1994-1996, 1999-2009): Employed by both Russian forces and Chechen fighters
• Former Yugoslavia (1991-1999): Widespread use by all parties in the conflicts
• Middle East: Used in various conflicts including Iran-Iraq War, Lebanese Civil War, and ongoing regional conflicts
• Africa: Deployed in numerous African conflicts, often remaining as UXO hazards

Modern Usage:

• Continues in service with Russian armed forces
• Active use in Ukraine conflict (2014-present)
• Stockpiled by numerous nations
• Significant UXO problem in former conflict zones

Production and Distribution

Manufacturing:

• Primary production in Soviet/Russian facilities
• Licensed production in several Warsaw Pact nations
• Unlicensed copying in China (Type 66) and North Korea
• Estimated production: Several million units over six decades

Current Status:

• Remains in active service in Russia and former Soviet states
• Stockpiled in large quantities globally
• Not banned under Ottawa Treaty (directional command-detonated mines with military operator present may be exempt)
• Continued production for export markets

Impact on Warfare

The MON-50 influenced tactical doctrine in several ways:

• Defensive Operations: Standard component of Soviet defensive positions, particularly for flank security and obstacle coverage
• Ambush Tactics: Enabled small units to inflict disproportionate casualties on larger forces
• Psychological Effect: Created significant psychological pressure on advancing infantry
• Counter-Mobility: Forced attackers to avoid predictable routes and conduct time-consuming breaching operations

Humanitarian Impact:

• Significant post-conflict UXO problem in many regions
• Civilian casualties from unmarked minefields
• Long-term area denial in agricultural and residential areas
• Challenges for demining organizations due to plastic construction

Technical Specifications

Explosive Content

• Main Charge: 700 grams of cast TNT (or equivalent high explosive)
• Explosive Type: TNT, Composition B, or similar military explosive
• Detonation Velocity: ~6,900 m/s (TNT)
• Explosive-to-Weight Ratio: 35% of total mine weight

Fragmentation Characteristics

• Fragment Count: 485-540 steel spheres
• Fragment Size: 5.5mm diameter (approximately .22 caliber)
• Fragment Material: Hardened steel ball bearings
• Fragment Velocity: 1,200-1,400 m/s at muzzle
• Effective Fragment Range: 50-60 meters lethal, 100+ meters casualty-producing

Dispersal Pattern

• Horizontal Arc: 50 degrees (±25 degrees from centerline)
• Vertical Arc: 16 degrees (±8 degrees from centerline)
• Optimal Height: 0.3-0.7 meters above ground level
• Coverage Area: Approximately 60-degree sector with depth of 50+ meters

Environmental Specifications

• Operating Temperature: -40°C to +50°C (-40°F to +122°F)
• Storage Temperature: -50°C to +60°C (-58°F to +140°F)
• Humidity Resistance: Sealed plastic casing provides good moisture resistance
• Shelf Life: 10+ years when properly stored; 25+ years not uncommon

Deployment Parameters

• Emplacement Time: 5-15 minutes for trained personnel
• Firing Cable Length: Up to 500+ meters (electric detonation)
• Trip Wire Length: Typically 10-50 meters
• Multiple Mine Linkage: Can be daisy-chained for simultaneous detonation
